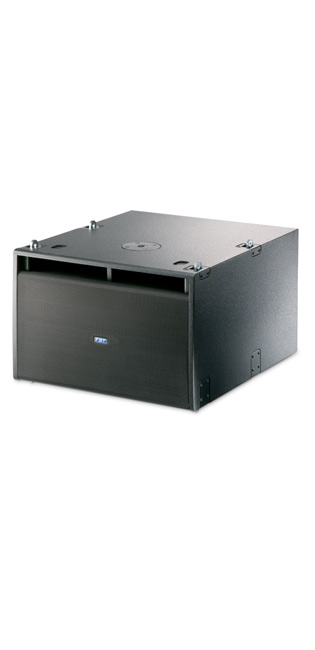

Mitus 212FS

The FBT MITUS 212FS is a passive 2 x 12" B&C with 3" Voice coil compact and flyable subwoofer which can extend the low frequencies of the MITUS 206L when combined together in ground-stacked or flying arrays.1000W -138dB SPL
SKU: 32086

OVERVIEW
FEATURES
SPECIFICATIONS
PRODUCT DESCRIPTION

Flyable Passive Subwoofer

1000W -138dB SPL



The FBT MITUS 212FS is a 2 x 12" compact and flyable subwoofer which can extend the low frequencies of the MITUS 206L when combined together in ground-stacked or flying arrays.

The modularity of the FBT MITUS 212FS makes it extremely flexible for a wide range of applications, from a small system to an elaborate line array system consisting of up to 12 MITUS 206L cabinets along with multiple FBT MITUS 212FS subs for large concert events.

The FBT MITUS 212FS shall meet the following performance criteria: Frequency response of 50Hz to 250Hz,Frequency sensitivity of 99dB, Maximum SPL of 134dB continuous and 138dB peak, Recommended power amplifier 1000W RMS/8 Ohm.

The MITUS 212FS feature Baltic birch plywood construction covered in a scratch resistant black paint with a M20 top-mounted stand adapter. Input connectors shall be parallel wired Neutrik NL4 speakon.

KEY FEATURES
  • Passive version, recommended amplifier of 1000Wrms / 8ohm
  • Compact vented band pass subwoofer sharing the same width and hardware suspension of the MITUS 206L
  • 320 mm (2 x 12’’) B&C neodymium magnet high excursion subwoofers with 75 mm (3’’) voice coils
  • Frequency Response from 50Hz to 120Hz
  • Neutrik Speakon NL- 4MDV connectors IN & LINK OUT
  • External digital processor requied
  • 15 mm (5/8’’) birch plywood enclosure, scratch resistant black paint
  • Low frequency extension cabinet for the MITUS 206L line array for flying or ground stacked configurations.
  • M20 top mount stand socket
SPECIFICATIONS
Configuration:
1 Way
Low frequency woofer:
2x 12" with 3" VC
Maximum SPL cont/peak:
134/138dB
Dispersion:
Omnidirectional
Input impedance:
8 Ohm
Crossover frequency:
External active required
Input connector:
2x Speakon NL4-MD-V In & Thru
Net Dimension (WxHxD):
574 x 420 x 660mm
Net Weight:
35kg
Transport Dimension (WxHxD):
780 x 710 x 520mm
Transport Weight:
39.5kg
