Mitus 112

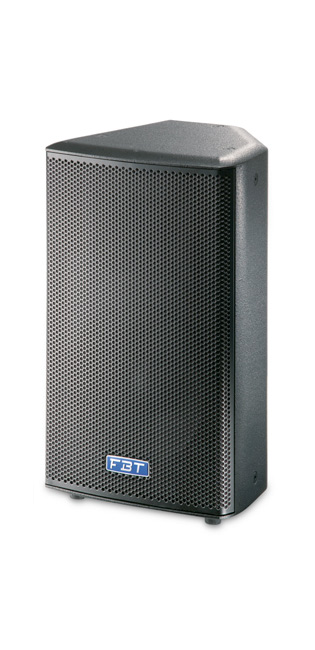

The MITUS 112 is a passive cabinet featuring a B&C 12" Low Frequency with a 1" exit 1.7"VC High frequency driver capable of up to 131dB SPL. Housed in Birch Ply wood and covered in our tour grade black finish
SKU: 31859

OVERVIEW
FEATURES
SPECIFICATIONS
PRODUCT DESCRIPTION

Passive Reinforcement Speaker

700W-8OHM – 131dB SPL

  • Hi-grade passive internal crossover featuring “soft-trip” circuitry protection of LF and HF transducers.
  • Speakon NL4MD-V connectors IN & LINK OUT.


The MITUS 112 is a passive cabinet featuring a 12" Low Frequency with a 1" High frequency driver capable of up to 131dB SPL.

Long Term Power - 350w
Short Term Power - 1200w
Recommended amplification - 700w RMS
Nominal Impedance - 8 ohm
Sensitivity (@1W/1m) - 99dB
Recommended HP Filter - 40hz - 24dB Octave

KEY FEATURES
2-way bass-reflex design
Passive version, recommended amplifier of 700Wrms / 8ohm
Hi-grade passive internal crossover featuring “soft-trip” circuitry protection of LF and HF transducers
Speakon NL - 4MDV connectors IN & LINK OUT
320 mm (12’’) B&C neodymium magnet woofer with 75 mm (3’’) voice coil
25 mm (1’’) exit B&C neodymium magnet HF driver with 44 mm (1.7’’) voice coil with 80°H x 50°V rotatable horn
Frequency response from 55Hz to 18KHz
15 mm (5/8”) birch plywood enclosure, scratch resistant black paint finish
Eight M10 fly points, 35 mm (1.38’’) speaker stand socket and two FBT design aluminium handles
Ideal for live sound reinforcement applications as both front of house main PA, and as a stage monitor. Also suited for permanent installations
Very lightweight, only 18Kg
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
55Hz - 18KHz @ 6dB
Low frequency woofer:
1x 12
High frequency driver:
1x 1
Maximum SPL cont/peak:
127dB / 131 dB
Dispersion:
80 x 50 (H x V)
Crossover frequency:
1.6khz
Input connector:
2x Speakon NL4 - In & Thru
Net Dimension (WxHxD):
380 x 660 x 280mm / 15 x 26 x 15in
Net Weight:
18kg / 39.7lb
Transport Dimension (WxHxD):
485 x 495 x 750mm / 19.1 x 19.5 x 29.5in
Transport Weight:
20kg / 44.1lb
