PROJECT sound speakers have been created and designed in Italy. Their exclusive design characterizes a complete new family of loudspeakers in the Audio Contractor range. They are ideal for any installation: their design allows the loudspeakers to be used in any environment, keeping the same high quality sound throughout. The PROJECT range utilizes a compact two-way system guaranteeing high performances, wide dynamics, high fidelity sound reproduction and high voice intelligibility. PROJECT speakers are equipped with an exclusive fully adjustable support bracket for easy installation, to cut costs and save installation time the bracket may be attached to the wall prior to installing the loudspeaker and is provided with a safety cable . Connection to the loudspeakers is via plug in “Euroblock” connector and adjustment of loudspeaker output is made via screwdriver adjustable switch.

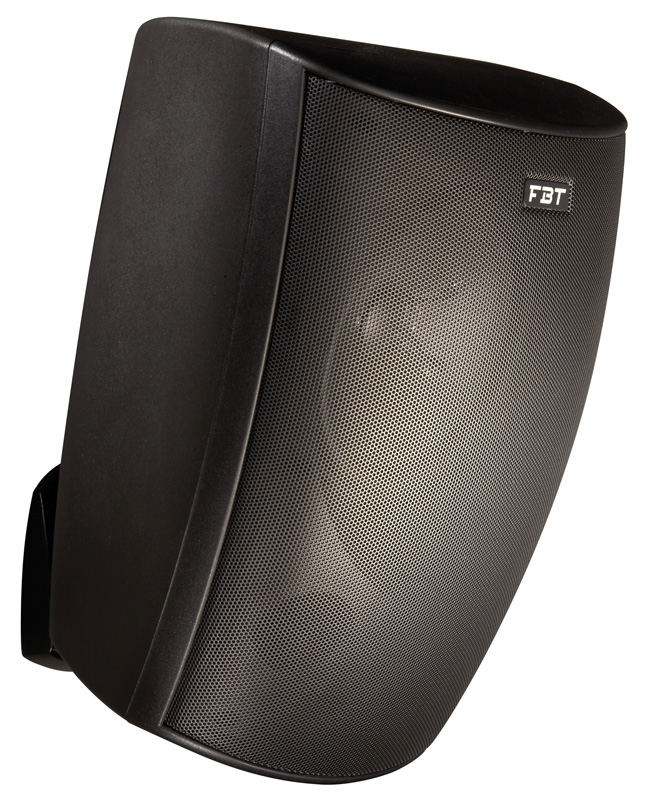

Project 660
60w 2 WAY BASS REFLEX SPEAKER UNIT
PROJECT 660 6.5 woofer and 1 tweeter passive installation speakers feature a fully adjustable support bracket for easy installation.Connection is via a Euroblock connector. 8 Ohm and 100V - Recommended Amplifier: 120W RMS. Long Term Power: 60 Watts. Short Term Power: 120w 100V Transformer: 15, 30, 45, 60W 111dB SPL
Available in Black or White
SKU: 29229
EAN: 8034138292299
Commodity Code: 85182200
Country of Origin: China
PRODUCT DESCRIPTION
KEY FEATURES
Features:
Recommended Amplifier - 120w RMS
Long Term Power - 60w
Short Term Power - 240w
Transformer - 15, 30, 45, 60W
Sensitivity (1W/1m) : 90dB
Long Term Power - 60w
Short Term Power - 240w
Transformer - 15, 30, 45, 60W
Sensitivity (1W/1m) : 90dB
Specifications:
| Code: | 29229 BT / 32371 WHT |
| Configuration: | 2 way |
| Recommended amplifier: | 120 W RMS |
| Long Term power: | 60 W |
| Short term power: | 240 W |
| Transformer: | 15-30-45-60 V |
| Nominal impedance: | 8 ohm |
| Frequency response: | 70Hz-20kHz -6dB |
| Low Frequency woofer: | 6.5 inch |
| Sensitivity (@1W/1m): | 90 dB |
| Maximum SPL cont/peak: | 111 dB |
| Dispersion: | 90x90 HxV |
| Recommended HP filter: | 40Hz-24dboct |
| Input connector: | Euroblock |
| Net Dimension (WxHxD): | 218x312x219 mm/inch |
SPECIFICATIONS
Adjustable EPower:
60 -45 - 30 - 15W
Sensitivity (@1W/1M:
90dB
Rated Power:
60W
Impedance:
8 Ohm
Mounting:
Wall mounting bracket (included)
Frequency Response:
70Hz - 20kHz
Low Frequency Woofer:
6.5"
High Frequency Driver:
Dome Tweeter
Maximum SPL Cont/Peak:
111dB
Dispersion:
90 x 90
Net Dimension (WXHXD):
218 x 312 x 219mm
Net Weight:
4.5kg
