FBT Audio Contractor

Project 315

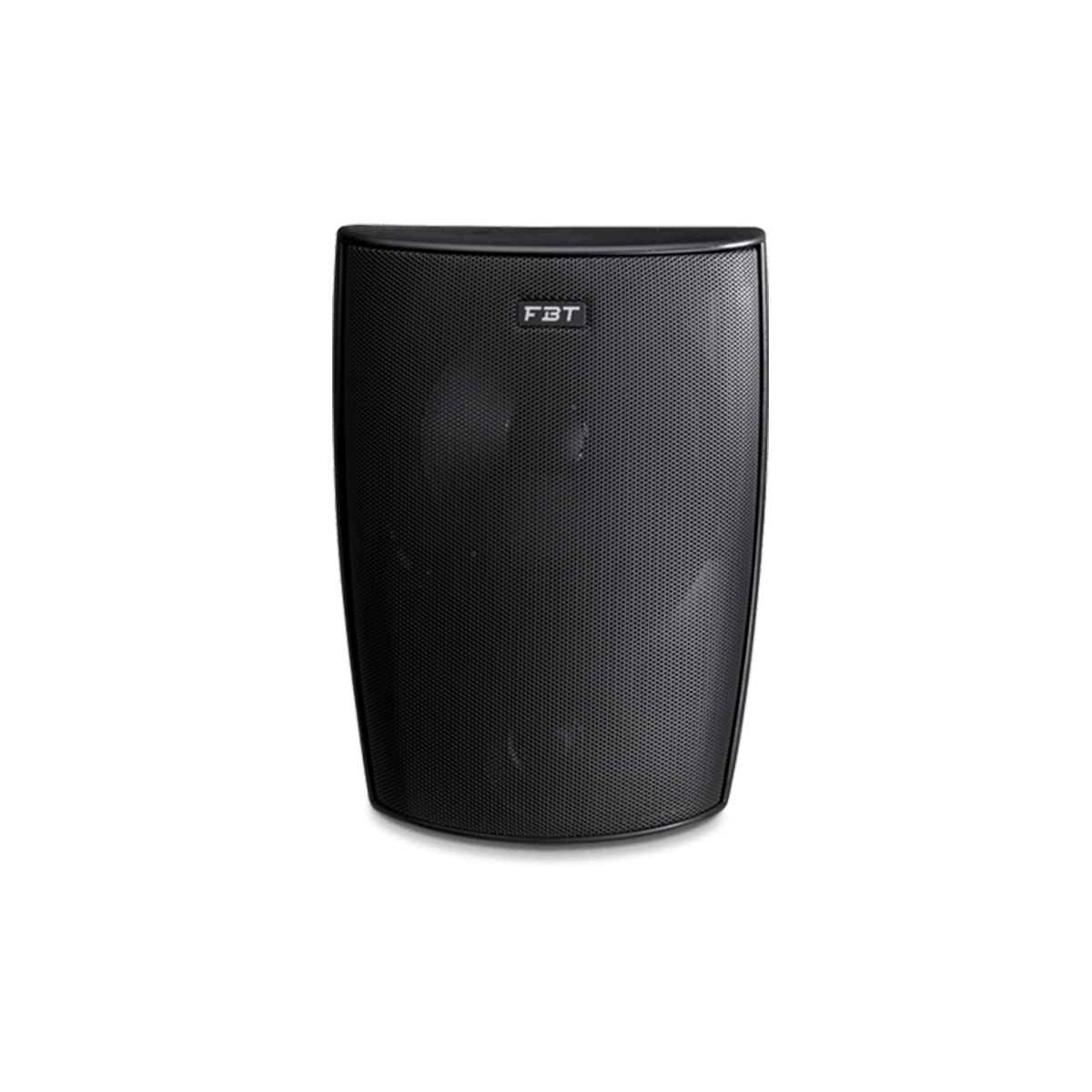

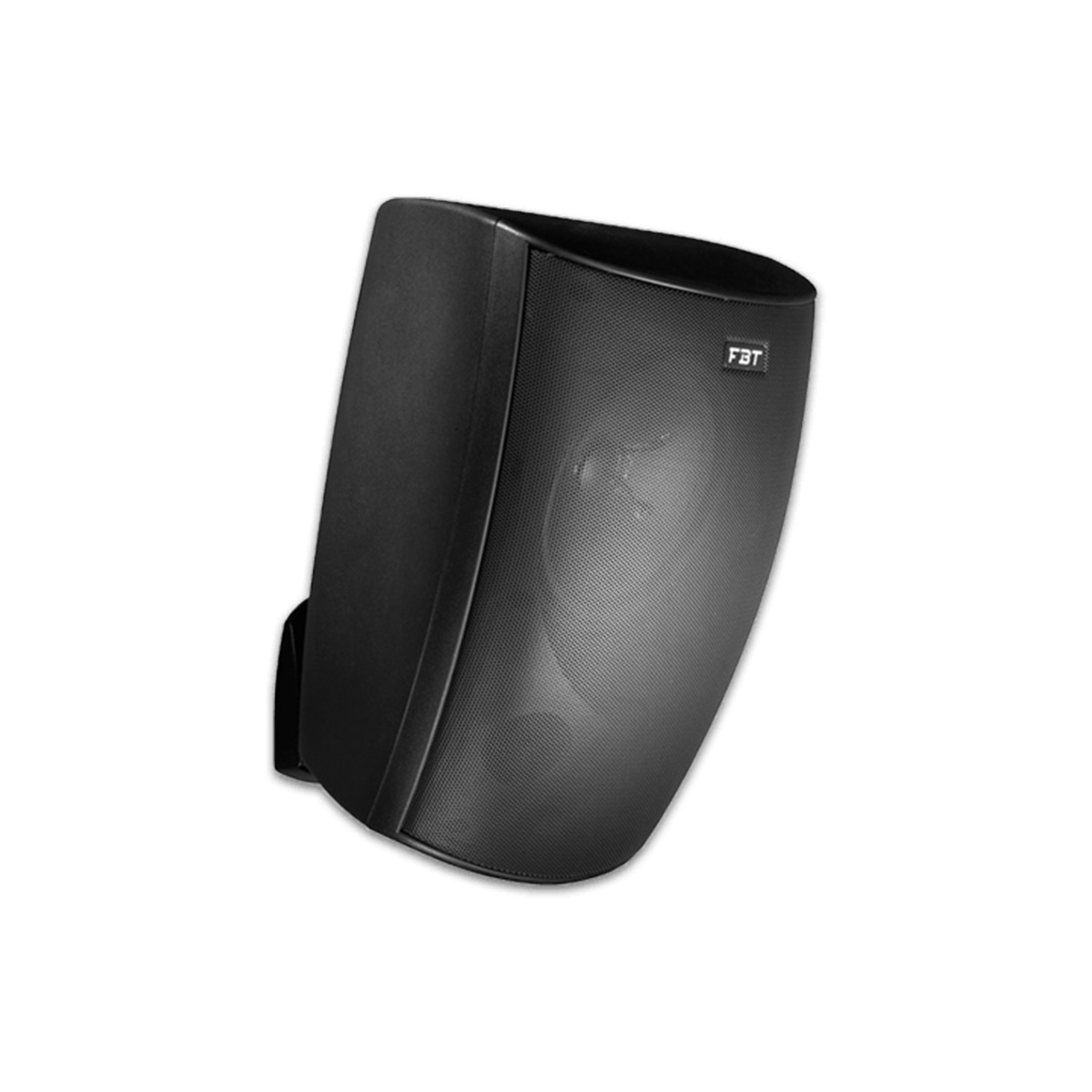

15w 2 WAY BASS REFLEX SPEAKER UNIT

PROJECT 315 passive installation speakers feature a fully adjustable support bracket for easy installation. Feature a 3.5 woofer and 0.5 tweeter. Connection is via a Euroblock connector - 8 ohm and 100V - Recommened Amplifier: 30W RMS Short Term Power: 15w Long Term Power: 60w - 100V Transformer: 1, 2, 4, 7.5, 15W Tappings Sensitivity (1W/1m): 85dB

Available in Black or White

RETAIL:
£74.42 inc VAT
 In Stock ( 16 Available )
SKU: 29350
EAN: 8034138293500
Commodity Code: 85182200
Country of Origin: China

OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOADS
PRODUCT DESCRIPTION

PROJECT sound speakers have been created and designed in Italy. Their exclusive design characterises a complete new family of loudspeakers in the Audio Contractor range. They are ideal for any installation: their design allows the loudspeakers to be used in any environment, keeping the same high quality sound throughout. The PROJECT range utilises a compact two-way system guaranteeing high performances, wide dynamics, high fidelity sound reproduction and high voice intelligibility. PROJECT speakers are equipped with an exclusive fully adjustable support bracket for easy installation, to cut costs and save installation time the bracket may be attached to the wall prior to installing the loudspeaker and is provided with a safety cable . Connection to the loudspeakers is via plug in Euroblock connector and adjustment of loudspeaker output is made via screwdriver adjustable switch.

KEY FEATURES

Features:

Recommended Amplifier: 30W RMS
Long Term Power: 15w
Short Term Power: 60w
Transformer: 1, 2, 4, 7.5, 15W
Sensitivity (1W/1m): 85dB
Recommended HP filter: 70Hz - 24dB Oct

Specifications:

Code:29350 BT / 32372 WHT
Configuration:2 way
Recommended amplifier:30 W RMS
Long Term power:15 W
Short term power:60 W
Transformer:1-2-4-7.5-15 V
Nominal impedance:8 ohm
Frequency response:100Hz - 15kHz -6dB
Low Frequency woofer:3.5 inch
Sensitivity (@1W/1m):85 dB
Maximum SPL cont/peak:100 dB
Dispersion:120x120 HxV
Recommended HP filter:70Hz-24dboct
Input connector:Euroblock
Net Dimension (WxHxD):143x204x162 mm/inch
SPECIFICATIONS
Recommended Amplifier:
30w RMS
Long term power:
15w
Short term power:
60w
Recommended HP filter:
70Hz -24dB Oct
Nominal Impedance:
8 Ohms
Sensitivity (@1W/1m):
85dB
Dispersion (H x V):
120 x 120
Freq. Response:
100Hz - 14KHz -6dB
Max. SPL for 1% T.H.D:
100dB
Driver:
LF 3.5" HF 0.5"
Input connectors:
Euroblock
Dimensions:
143 x 204 x 162 mm
Configuration:
2-way
Recommended Amplifier:
30W RMS
Long Term Power:
15W
Short Term Power:
60W
Sensitivity (@1W/1M:
85dB
Impedance:
8 Ohm
Frequency Response:
100Hz - 15kHz - 6dB
Low Frequency Woofer:
3.5 inch
Maximum SPL Cont/Peak:
100dB
Dispersion:
120x120 HxV
Input Connector:
Euroblock
Net Dimension (WXHXD):
143x204x162 mm
