The dual channel version of our best seller RU-8011DB offer 2 independent channels into a half rack receiver. Superb space saver without compromising on audio or RF. The REMOSET technology allows the Scanned channel to be sent to the receiver with the touch of a button. Removable antennas allow the unit to be racked using the optional DR-900/RP-900 rack kit. Supplied with 2 x RU-G3TH#3 dynamic handheld transmitters it offers a complete solution where 2 presenter systems are needed.

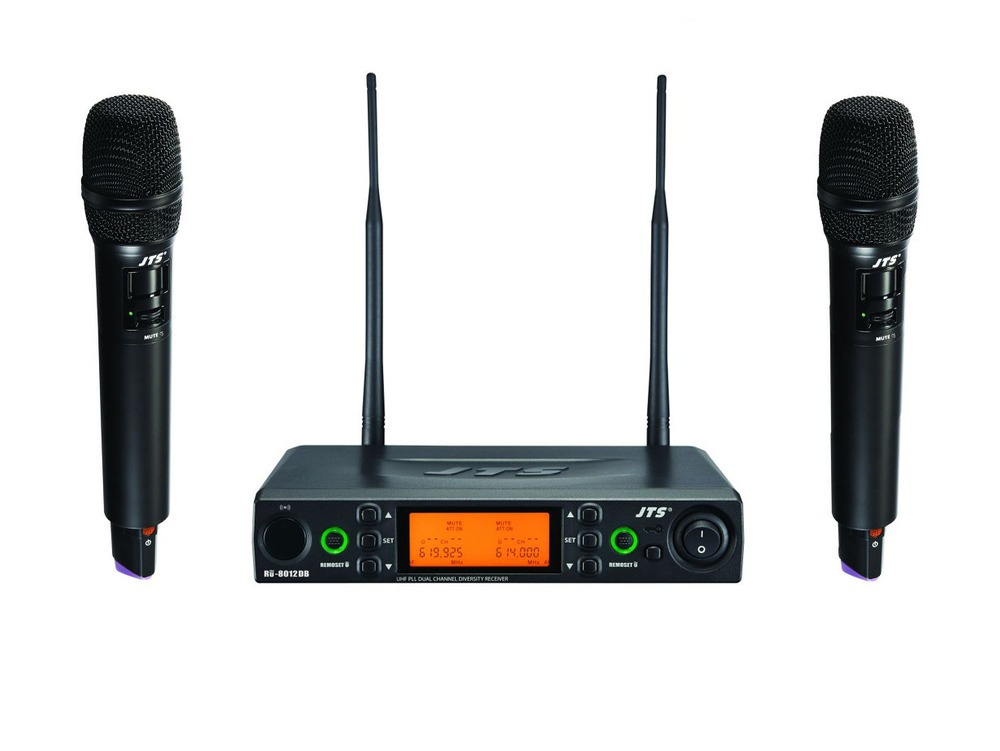

RU-8012DB/RU-G3TH#3
UHF Dual Channel Diversity Wireless System with Dynamic Handheld Transmitter
JTS Best Selling wireless dual handheld microphone system - Now available with Dynamic capsule.
*Please select required frequency range using the dropdown box.
SKU: 200372
HS Code: 8518100090
Country of Origin: Taiwan
PRODUCT DESCRIPTION
KEY FEATURES
RU-8011DB RECEIVER
- JTS "Antenna diversity" Two antennas are used, spaced a few inches apart, each receiving the same signal from the transmitter. The receiver constantly measures the signal strength coming from both antennas, and switches to whichever antenna is picking up the stronger signal.
- 6 groups, each with up to 22 compatible preset channels
- 1,441 selectable individual frequencies
- REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
- Auto-Scan function
- Pilot tone squelch and noise mute
- Backlit LCD display with status indications, e.g. group/channel, antenna A/B, RF receiving level, AF audio level
- XLR output (balanced.) and 6.3 mm jack output (unbalanced.)
- Removable BNC Antennas
- Half Rack size with optional rack kits available (DR-900/RP-900)

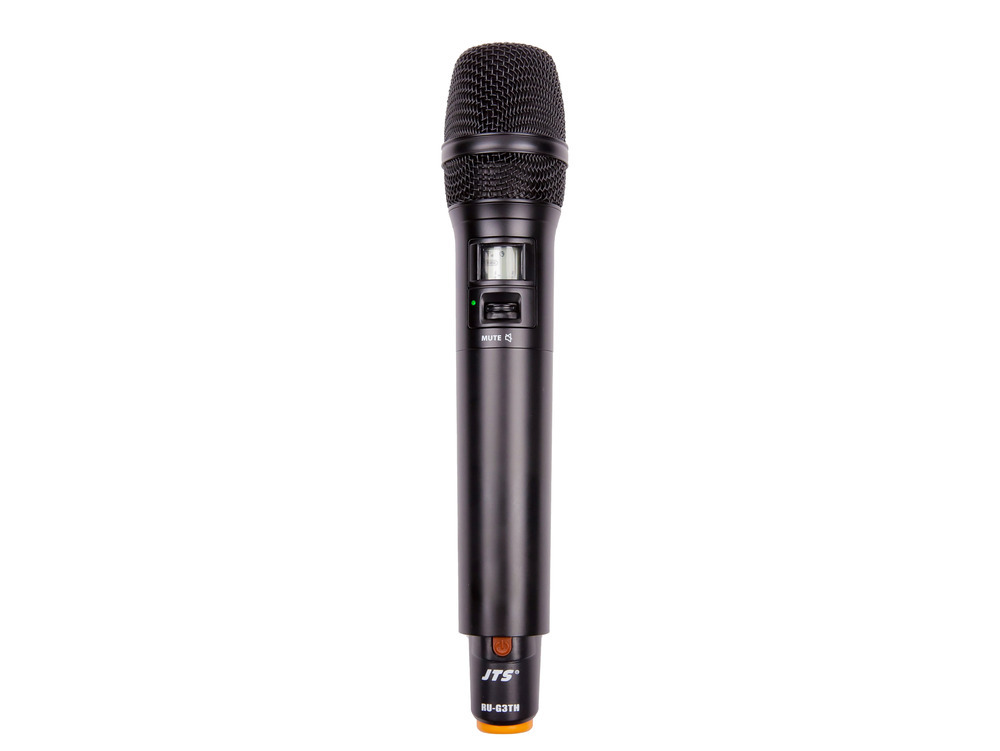

RU-G3TH#3 Handheld Dynamic Transmitter Features:
- Phase-locked Loop (PLL) synthesised tuner.
- Powered by 2 x AA batteries.
- Back lit LCD display with channel and battery life indicator, ID number.
- Extended dynamic range and smooth frequency response.
- Noise mute and tone-key squelch.
- Separate Mute switch and Power button.
••Optional Charger available (G3CH-2)
SPECIFICATIONS
Frequency Preparation:
PLL Synthesized Control
Frequency Setting:
REMOSET U
Bandwidth:
36MHz
Frequency Range:
606.5-642MHz or 823-865MHz
Handheld Capsule:
Dynamic
S/N Ratio:
>105dB(A)
Receiving Mode:
Antenna Diversity
Squelch:
Pilot Tone & Noise Mute
Power Supply:
DC12~15V/300mA
Output Connector:
2x independent balanced XLR and 1x 6.3mm unbalanced jack
Antenna Type:
BNC Socket
