The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

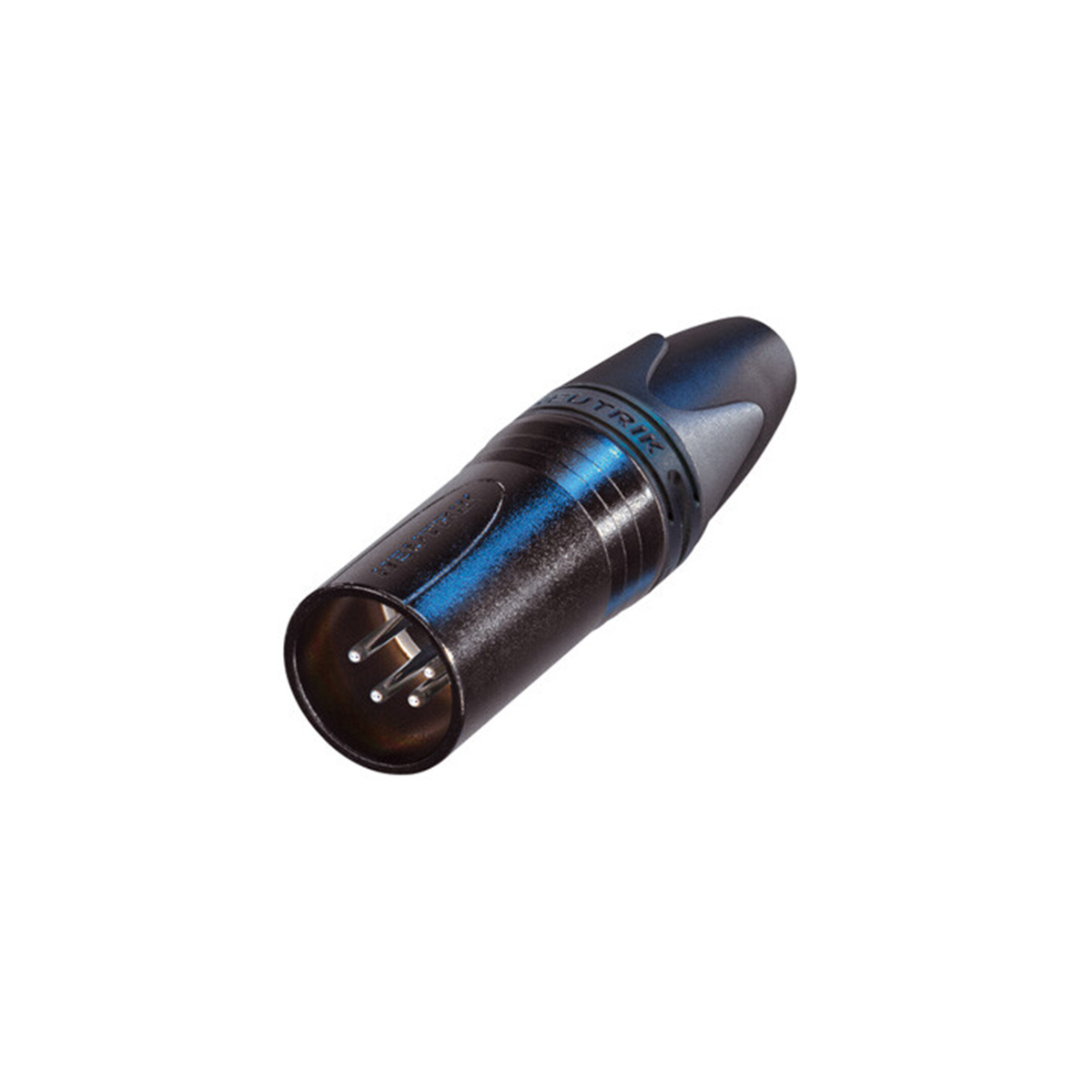

NC4MXX-BAG
4 pole cable connector male
4 pole male cable connector with black metal housing and silver contacts.
SKU: 120826
EAN: 7613187000300
Commodity Code: 85366953
Country of Origin: Liechtenstein
PRODUCT DESCRIPTION
KEY FEATURES
SPECIFICATIONS
Capacitance Between Contacts:
= 7 pF
Contact Resistance:
= 3 mO
Dielectric Strength:
1,5 kVdc
Insulation Resistance:
> 10 GO (initial)
Rated Current Per Contact:
10 A
Rated Voltage:
< 50 V
Cable O.D.:
3.5 - 8.0 mm
Insertion Force:
= 20 N
Withdrawal Force:
= 20 N
Lifetime:
> 1000 mating cycles
Wiresize:
max. 1.5 mm² (16 AWG)
Locking Device:
Latch lock
Boot:
Polyurethan
Contact Plating:
2 µm Ag over 2 µm Ni
Contacts:
Brass (CuZn39Pb3)
Insert:
Polyamide (PA66)
Locking Element Shell:
Zinc diecast (ZnAl4Cu1)
Shell:
Zinc diecast (ZnAl4Cu1)
Shell Plating Strain Relief:
Black chromium / Polyacetal (POM)
Flammability:
UL 94 V-0
Standard Compliance:
IEC 61076-2-103
Protection Class:
IP 40
Solderability:
Complies with IEC 68-2-20
Temperature Range:
-30 °C to +80 °C
