Stock Email
JTS

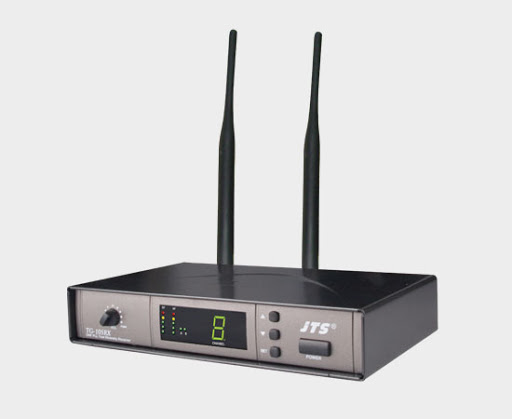

TG-10SRX

The TG-10SRX, 606.5-614MHz (CH 38) true diversity receiver which provides an option for fixed installation of the Tour guide system it is compatible with TG-10T. It can receive the signal from TG-10T and deliver it for output to a PA system, or for recording and other processes. NOTE Optional TG-10CH2 2 way, TG-10CH18 18 way or TG-10CH36 36 way charger required
SKU: 81335

OVERVIEW
SPECIFICATIONS
PRODUCT DESCRIPTION

Tour Guide Desktop Receiver



The TG-10SRX, true diversity receiver is compatible with TG-10T. It can receive the signal from TG-10T and deliver it for PA, recording and other processes.

SPECIFICATIONS
Net Dimension (WxHxD):
212 x 40 x 125mm
Frequency Preparation:
PLL Synthesized Control
S/N Ratio:
>105dB
Display:
LED
Display Contents:
AF Level, Channel
Controls:
Power On/Off, Channel, Audio Level
Audio Output Level:
-12dB
Squelch:
Pilot Tone & Noise Mute
Operation Voltage:
12-18V DC, 350mA
Output Connector:
1x XLR Balanced Socket, 1x 6.3mm Unbalanced Jack Socket
Carrier Frequency Range:
606.5-614MHz
AF Output Impedance:
600Ω
