JTS

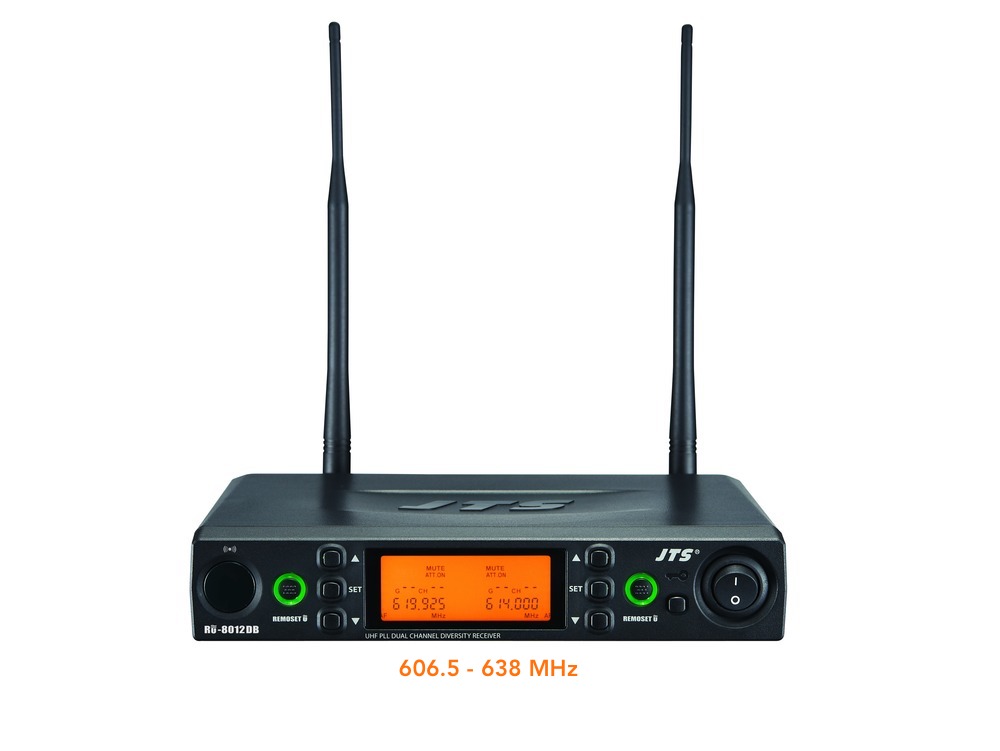

RU 8012DB

Dual Channel Receiver

The dual channel version of our best seller RU-8011DB offer 2 independent channels into a half rack receiver. Superb space saver without compromising on audio or RF. The REMOSET technology allows the Scanned channel to be sent to the receiver with the touch of a button. Removeable antennas allow the unit to be racked using the optional DR-900/RP-900 rack kit. 863-865MHz or 606.5-638MHz

SKU: 81109

SPECIFICATIONS
SPECIFICATIONS
Frequency response:
50Hz~16KHz±2dB
Net Dimension (WxHxD):
212.3mm x 38.3mm x 144mm
Sensitivity:
-95dBm, S/N >80dB
Frequency Preparation:
PLL Synthesized Control
S/N Ratio:
>105dB (A)
Display:
LCD
Display Contents:
Group, Channel, Frequency, Antenna A/B, Mute Display, AF Meter, RF Meter, Battery Status
Controls:
Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad
Audio Output Impedance:
600Ω
Squelch:
Pilot Tone & Noise Mute
Output Connector:
2 independent balanced XLR and 2 ˙6.3mm unbalanced jacks
Carrier Frequency Range:
606.5 - 642MHz
Frequency Setting:
Ultrasonic / REMOSET (Transmit)
Receiving Mode:
Antenna Diversity
Bandwidth:
36MHz
Rejection Ratio:
>80dB
Antenna Type:
BNC Socket
Antenna Booster Power:
DC 12-15V / 100mA
Power Supply:
12-15v DC / 500mA
