JTS

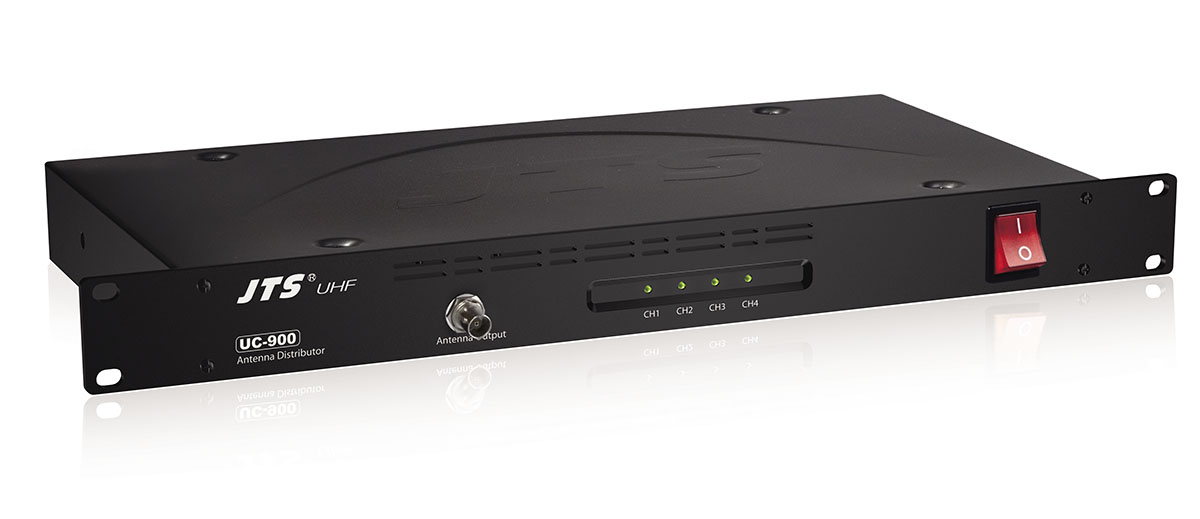

UC-900

4-way antenna combiner. Flexible tool ideal for: Combining Signals of up to four in-ear monitoring transmitters, e.g. SIEM-111 can be sent via one antenna Signals of up to four antennas which are positioned at a certain distance from each other can be combined for extending the reception area of a stationary receiver. Frequency range 470-960 MHz. Gain: 0 dB, ±2 dB Maximum RF power for each input: +20 dBm (100 mW) Low-voltage outputs: 4 x DC 12 V, 1 A max. for supplying operating voltage directly to connected transmitter.Each antenna to be connected via BNC jacks Supplied with suitable connection cables
SKU: 81350

OVERVIEW
SPECIFICATIONS
PRODUCT DESCRIPTION

UHF Antenna Combiner



This 4 inputs and 1 output antenna combiner is compatible with transmitters like SIEM-2T, TG- 10STX, TG-10GSTX and other transmitters with BNC antenna connecters.

It is designed to improve RF performance by reducing intermodulation distortion.
This product will also help to save investment in antenna systems.
* Provides 4 DC outputs each of 12 V x 800 mA for 4 sets of transmitters.

SPECIFICATIONS
Net Dimension (WxHxD):
580x 45 x 260
Net Weight:
2.3kg
Power Consumption:
6W
Frequency Range:
470-970 Mhz
Input Voltage:
100-240VAC MAX 2A 50/60Hz
Full System Gain:
0dB(2dB)
VSWR Input / Output:
1.5:1
RF Input Power:
+20dBm (100mW)
Input Signal Indicator Threshold:
+5dBm
Input/Output Connectors:
BNC female (4 input at back,1 output at front) DC female (4 input, Maximum Power Output Limit at 12V/1A)
