JTS

UB-900i

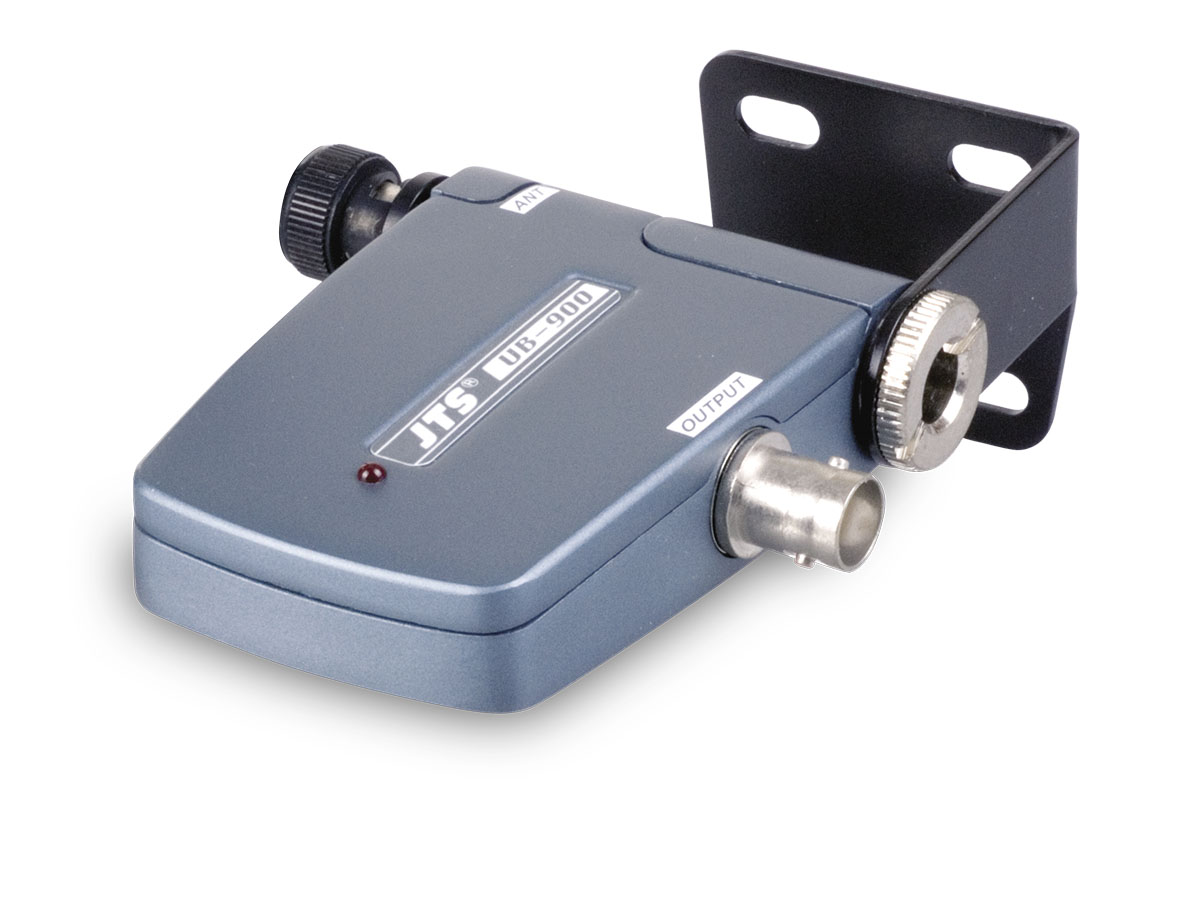

The UB-900i is an Antenna booster for UHF PLL receivers.Power supply via JTS UHF PLL receivers or via active antenna splitter UA-960. DC feed-through output for cascading up to 2 x UB-900I max. Ideally suited for mobile applications, can be mounted onto microphone stand with 16 mm (?") thread. Two are required for true divercity systems.
SKU: 81352

OVERVIEW
SPECIFICATIONS
PRODUCT DESCRIPTION

UHF Antenna Booster



UB-900i is designed to compensate signal loss on long antenna cables or passive antenna splitter.

One UB-900i can compensate 10dB of cable attenuation which is about 20 meters of RG-58 cable.

This product is powered by power output from antenna distributor UA-960 or from receivers’ BNC connecter.

DC power supply is indicated by a red LED.

Up to two UB-900i can be cascaded.

SPECIFICATIONS
Net Dimension (WxHxD):
75 x 18.2 x 77 (Antenna + Rackmount kit excluded)
Net Weight:
136 Grams (Antenna & Rack Mount Kit Excluded)
Power Supply:
8-12V, Max. 25mA/1 Unit
Frequency Range:
494-870MHz
