JTS

CX-516

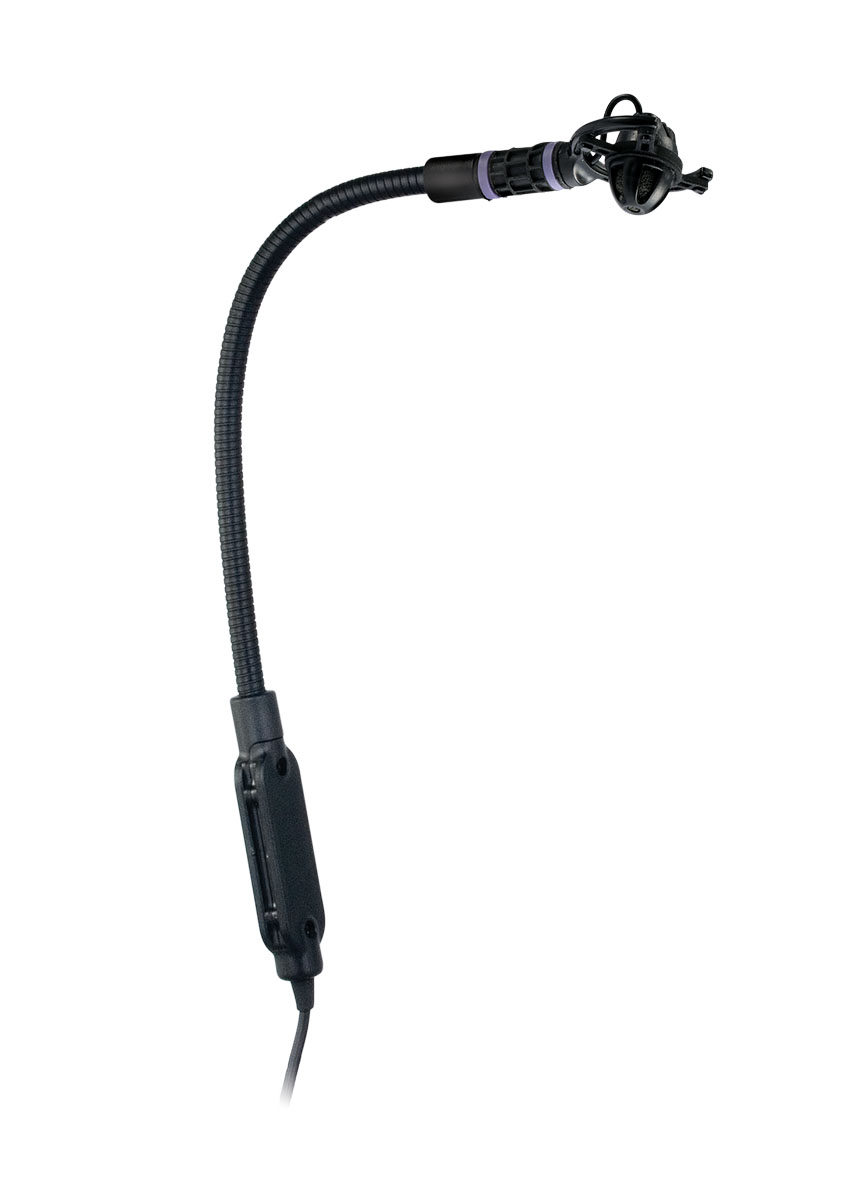

Miniature Unidirectional Condenser Instrument Microphone

The CX 516 is a Unidirectional Condenser Instrument microphone. Mini gooseneck design. 3.3 metre cable with standard 3-pole XLR. Requires phantom power. Ideal for accoustic string instruments, woodwind and brass instruments and accordions. Built in mounting clip
RETAIL:
£101.74 inc VAT
 In Stock ( 16 Available )
SKU: 81491
EAN: 4712832615821
Commodity Code: 8518100090
Country of Origin: China

OVERVIEW
SPECIFICATIONS
DOWNLOADS
PRODUCT DESCRIPTION
CX-516
The CX-516 is a high-quality, miniature unidirectional condenser microphone designed for studio recording, broadcasting, and sound reinforcement. Its wide frequency response and low noise characteristics have made it a standard for use with acoustic string instruments: violins, cellos, as well as woodwind instruments, accordion, and organ (Leslie) cabinets. The tailored sound characteristics, superb transient response allows detailed transparent reproduction of the sound source. The mini flexible gooseneck design provides quick pinpoint miking via the built in mounting clip. Newly added spider suspension isolates unwanted mechanical vibration effectively.


SPECIFICATIONS
Frequency response:
30Hz - 18kHz
Net Dimension (WxHxD):
245 x 30mm
Net Weight:
150grams
S/N Ratio:
70dB
Output Connector:
3 Pin Male XLR
Microphone Type:
Uni-directional Condenser
Current Consumption:
≤ 3mA
Impedance:
220Ω
Sensitivity (at 1kHz):
-65dB*(0.56mV)*0dB
Max. SPL for 1% THD:
130dB
Phantom Power Requirements:
9-52 VDC
