JTS

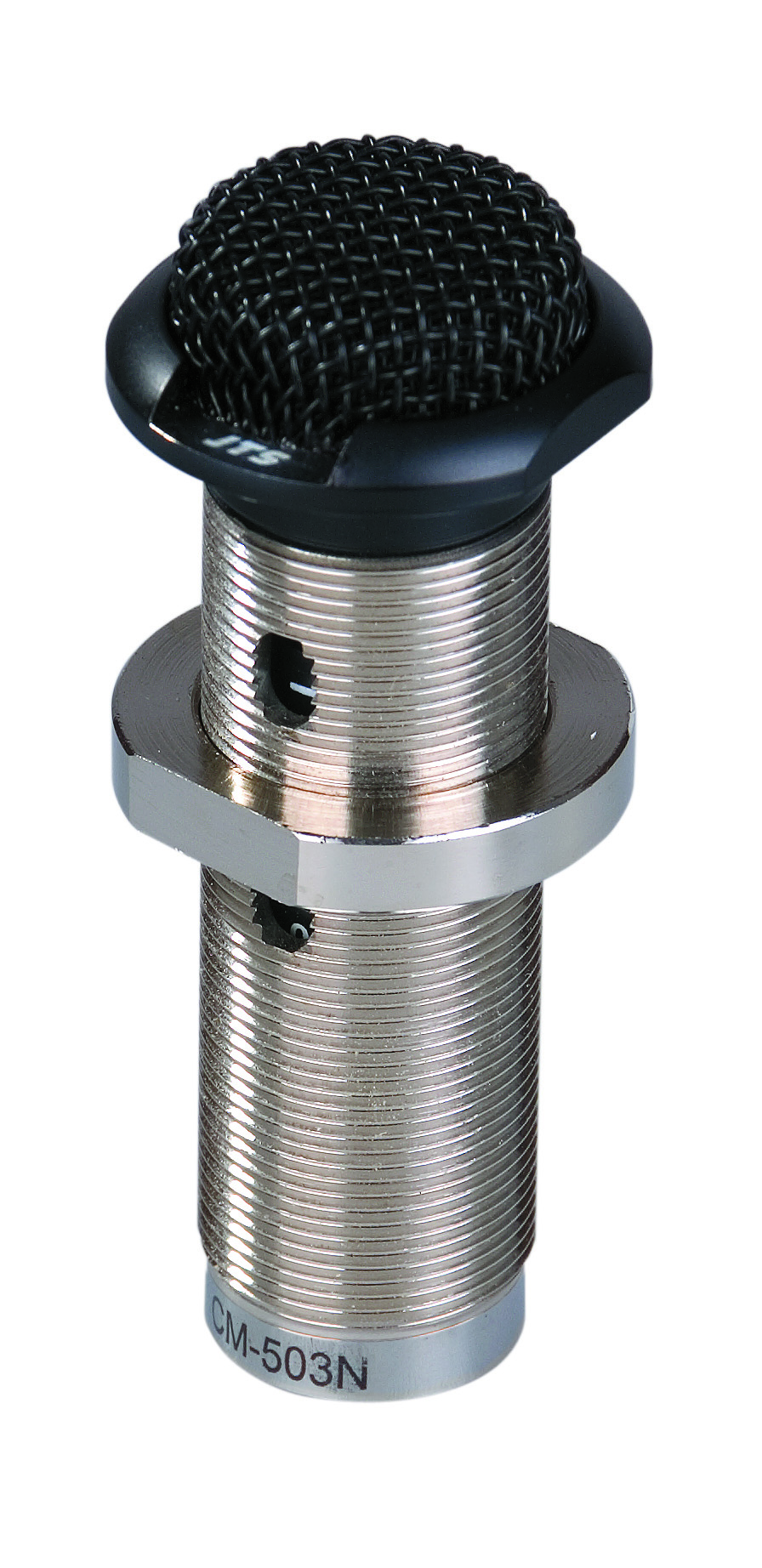

CM-503N (Omni Diredtional)

Low Profile Boundary Microphone

Extremely small and discrete Omni-Directional boundary microphone able to be mounted into a table or wall. Perfect for conference, installed sound or surveillance. Available in Black or White finish
RETAIL:
£63.10 inc VAT
 In Stock ( 34 Available )
SKU: 81572
EAN: 4712832618761
Commodity Code: 8518100090
Country of Origin: China

OVERVIEW
FEATURES
PRODUCT DESCRIPTION

SPECIFICATIONS

CM503U
TypeElectret Condenser
Frequency Response40 to 12,000Hz
Polar PatternHalf-Cardioid
Sensitivity (at 1,000Hz)-48±3dB* (3.98mV)* 0dB=1V/bar
Attenuation Switch-10dB
Low Frequency Roll-off80Hz
Impedance220
Max. SPL For 1% T.H.D.140 dB
Signal To Noise Ratio70dB
Current Consumption3mA
Power Supply9-52 VDC phantom power
Output ConnectorXLR-M type(power module)
KEY FEATURES

* Unidirectional pickup pattern
* Extended frequency response
* Built in Low Cut and -10 dB Pad
* Option with Matt Black or Matt White
* Terminated with XLRM connecter
