JTS

CM-601

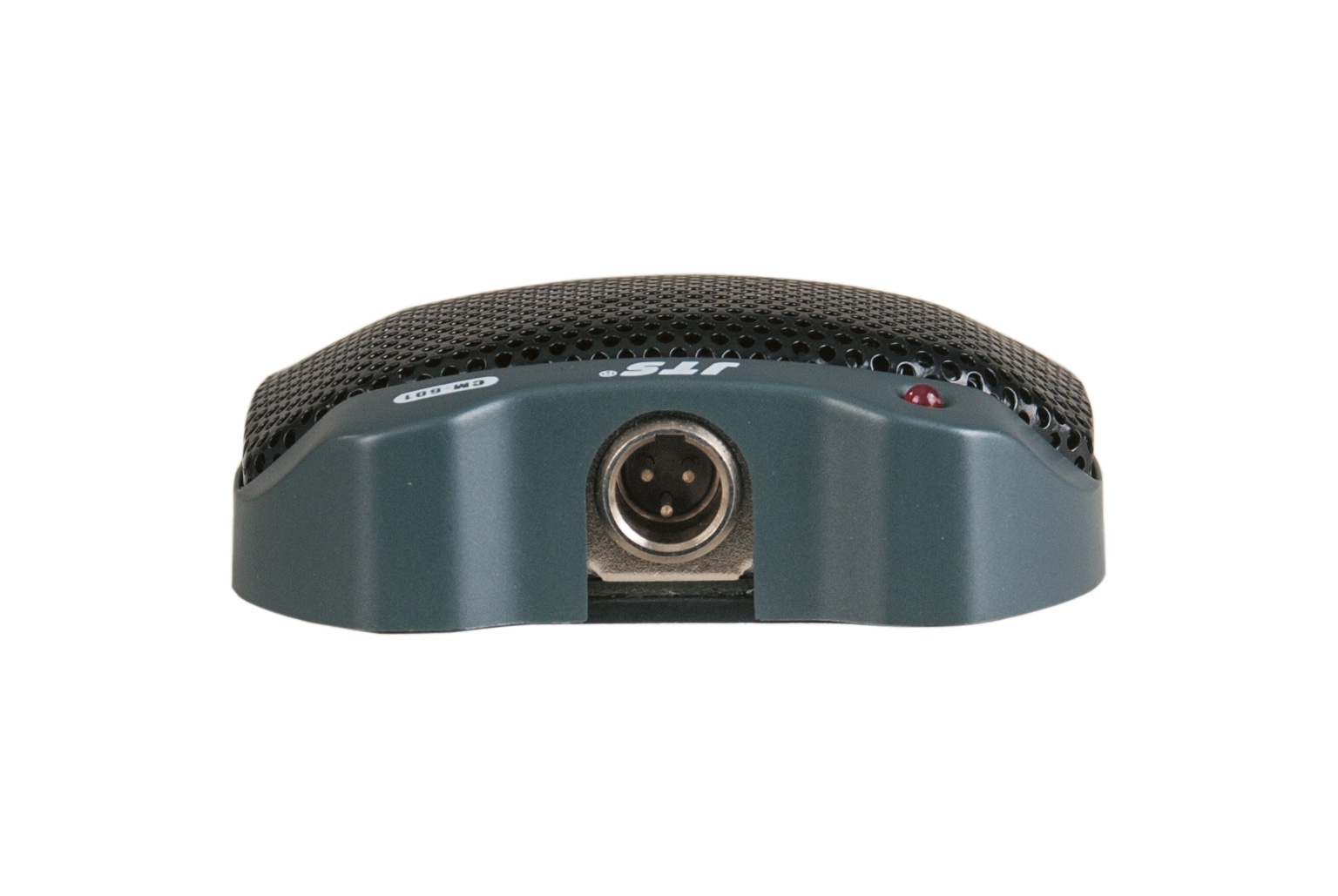

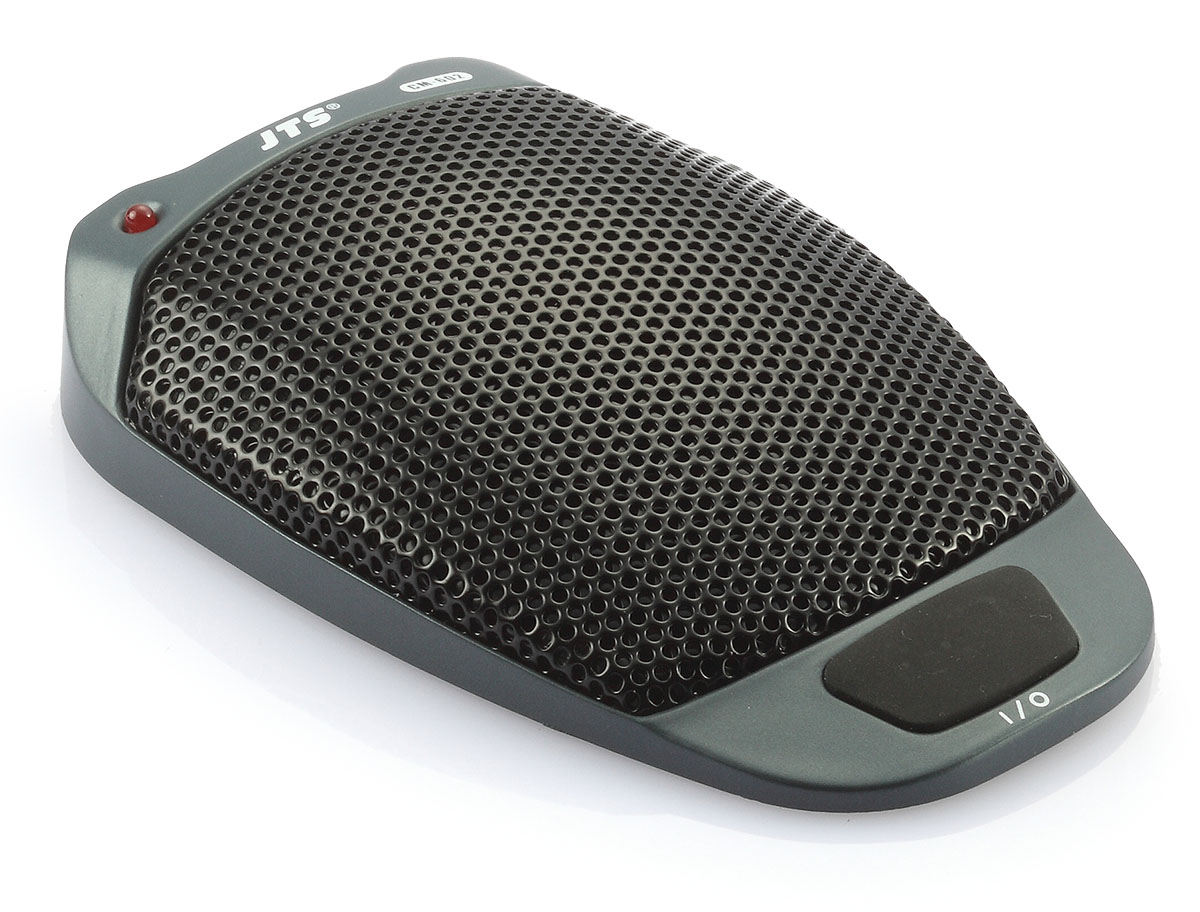

The CM-601 is a semi-cardiod Electret boundary microphone. features Configurable push-button (Push To Talk, Push To Mute or switching function) Standby LED. Elastic cartridge suspension for preventing impact sound and structure-borne noise. For theatrical performances, discussions, conferences and in churches. Requires Phantom power supply DC 48 V. Supplied With 6 m connection cable, 3-pole XLR
SKU: 81576

OVERVIEW
SPECIFICATIONS
PRODUCT DESCRIPTION
CM601

* The CM-601 is designed for conference, house of worship, and theater applications.

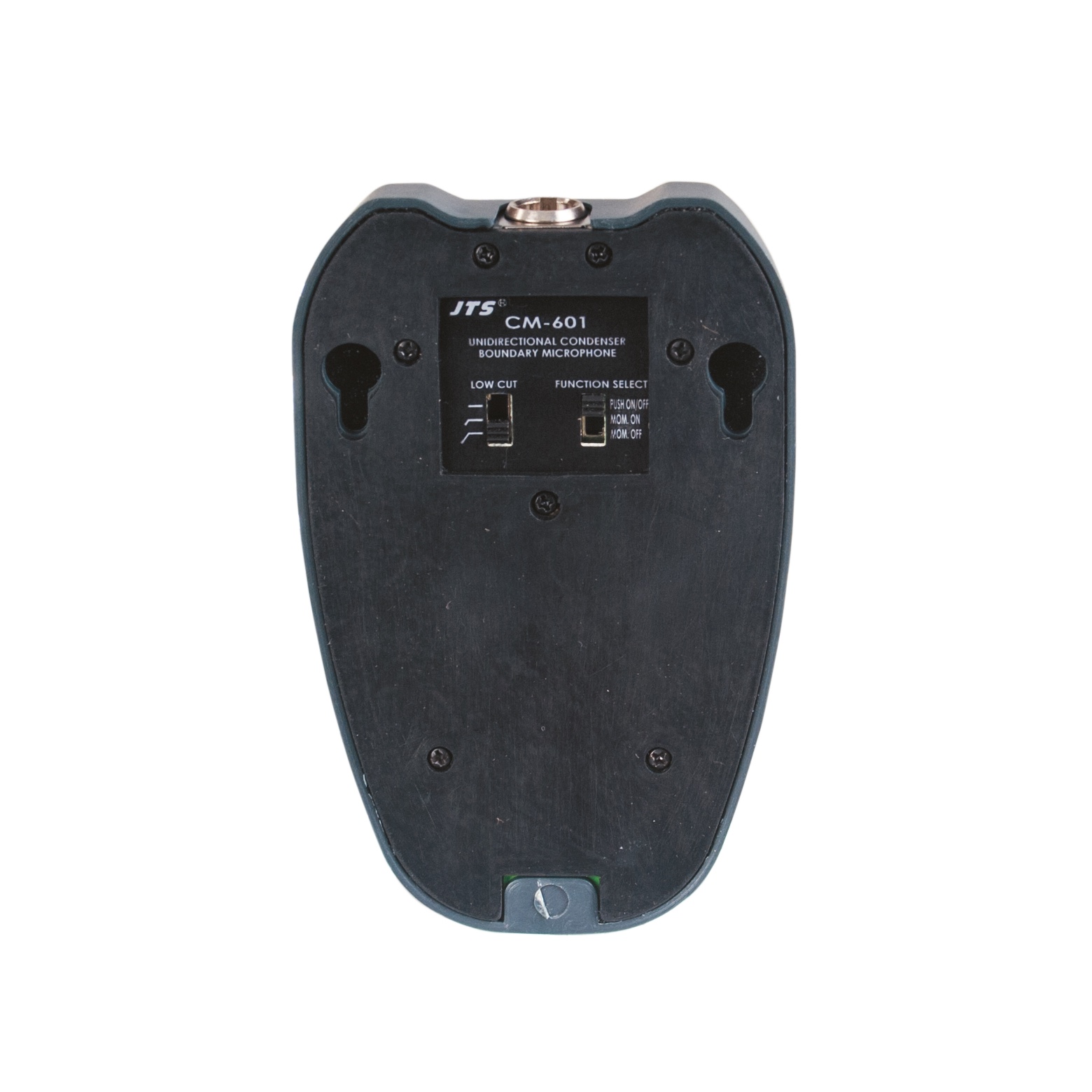

* The CM-601 features red LED indicator, 3 step Low-Cut switch and back electric cardioid condenser capsule.
* The membrane ON/OFF switch can be programmed to PUSH ON/PUSH OFF,PUSH TO TALK and PUSH TO MUTE three modes.
* The precisely calculated circuit plus tailored capsule response ensure transparent sound quality.
* Internal shock mount minimizes mechanical noise.
SPECIFICATIONS
Frequency response:
30Hz - 12kHz
S/N Ratio:
67dB
Output Connector:
3 Pin Male Mini XLR
Power Supply:
12-52V DC Phantom Power
Microphone Type:
Electret Condenser
Current Consumption:
≤6mA
Directional Pattern:
Half-Cardioid
Low Frequency Roll-Off:
80Hz - 120Hz
Impedance:
100Ω
Sensitivity (at 1kHz):
533 dB* (2.23mV) 0dB
Max. SPL for 1% THD:
125dB
Switches:
Push Control On/Off, Function Selection Push On/Off, Momentary On/Off, Low Cut Selection
