The FBT MITUS 215A two-way bi-amplified speaker system shall incorporate 2 x 15” B&C neodymium woofer with 3” voice coil and 2” exit B&C neodymium driver with 2.5” voice coil coupled to a rotatable 60° x 40° horn; thanks to the rotatable HF horn it is possible to create horizontal arrays of 2 enclosures for a total coverage of 100°.
The FBT MITUS 215A shall meet the following performance criteria: Frequency response of 42Hz to 20kHz, Maximum SPL of 136dB, 1100W RMS + 250W RMS class D amplifiers.
The FBT MITUS 215A provides a DSP with 6 EQ presets. The FBT MITUS 215A feature 0.59" baltic birch plywood construction covered in a scratch & scuff resistant black finish; the front shall be protected by a heavy duty metal grille with anti-resonance spacers and exclusive synthetic cloth to protect the drivers.
The control panel provides XLR input & link, level, preset, delay, HP filter.
The 12 M10 anchoring points built into the cabinet allow the FBT MITUS 215Aspeaker to be surface mounted on ceilings.

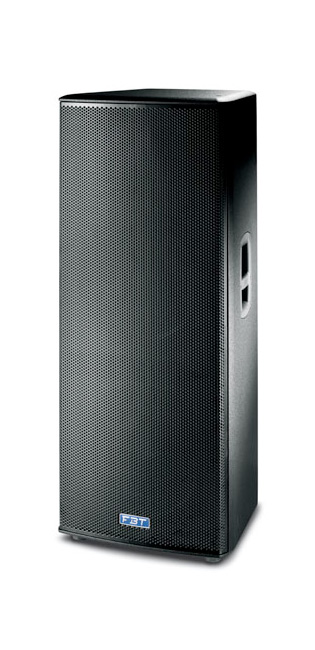

Mitus 215A
The FBT MITUS 215SA is an two-way active reinforcement speaker featuring 2 x 15” B&C neodymium woofer with 3” voice coil and 2” exit B&C neodymium driver with 2.5” voice coil coupled to a rotatable 60° x 40° horn . Built in Amplifier delivering 1100w + 250w RMS – 136dB SPL
SKU: 35960
EAN: 8034138359602
HS Code: 85185000
Country of Origin: Italy
PRODUCT DESCRIPTION
Processed active speaker
1100w + 250w RMS – 136dB SPL
KEY FEATURES
- 2-way, bi-amplified, bass-reflex design
- 2 x 380mm (15”) B&C neodymium magnet woofer with 75mm (3”) voice coil
- 50mm (2”) exit B&C HF driver with 64mm (2.5’’) voice coil
- Frequency response from 42Hz to 20kHz
- Class D built-in amplifiers, 1100Wrms to the LF and 250Wrms Class G to the HF
- Switch mode power supply
- DSP with 6 EQ presets
- 60°H x 40°V rotatable HF horn
- Birch plywood enclosure, scratch resistant black paint finish
- Control panel with XLR input and link, volume, presets, HP filter, ground-lift
- 12 x M10 fly points and two FBT design aluminum handles
- Ideal for live sound reinforcement applications and permanent installations
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
42Hz - 20kHz
Low frequency woofer:
2x 15" (3" VC)
High frequency driver:
1x 2" (2.5" VC)
Maximum SPL cont/peak:
133dB / 136dB
Dispersion:
60¬? H x 40¬? V
Input impedance:
22kOhm
Crossover frequency:
1.2kHz
Input connector:
XLR with Link Out
Net Dimension (WxHxD):
493 x 1245 x 471mm
Net Weight:
52.5kg
Transport Dimension (WxHxD):
618 x 1355 x 610mm
Transport Weight:
58kg
AC Power requirements:
800 VA
Built-in amplifier LF/HF:
1350w RMS
Built-in amplifier peak LF/HF:
2700w
Power cord:
5m PowerCon True1
DOWNLOADS
PACKING INFO
| SKU | 35960 |
| EAN | 8034138359602 |
| Packed Dims (H x W x D) | 133cm x 59cm x 58cm |
| Packed Weight | 59kg |
| Commodity Code | 85185000 |
| Country of Origin | Italy |
