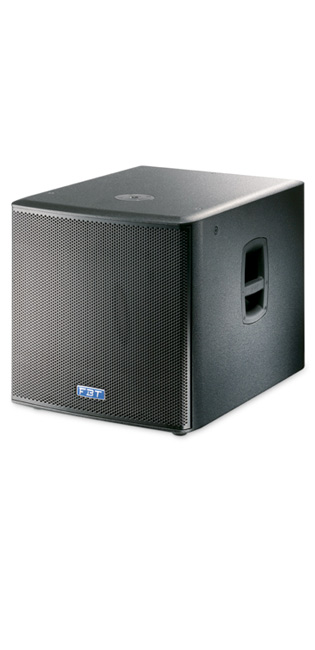

Mitus 118SA

The FBT MITUS 118SA ,Is an active B&C 18" with 3" VC compact vented band-pass subwoofer it is the perfect low-frequency extension for the MITUS range. 18mm / 0.70" birch plywood enclosure with abuilt in 1200 Watt amplifier delivering 139 dB SPL
SKU: 31757

OVERVIEW
FEATURES
SPECIFICATIONS
PRODUCT DESCRIPTION

Processed Active Subwoofer

1200W – 139DB SPL



The FBT MITUS 118SA, 18" compact vented band-pass subwoofer is the perfect low-frequency extension for the MITUS range and the ideal companion for the FBT MITUS 206LA line array for ground stack applications with optional metal base.

The FBT MITUS118SA shall meet the following performance criteria: Frequency response of 36Hz to 100Hz, Maximum SPL of 139dB peak,Class D amplifier 1200W RMS.

The FBT MITUS 118SA provides a DSP with 8 presets-cardioid and infra configurations.

The FBT MITUS 118SA feature 0.70" Baltic birch plywood construction covered in a scratch resistant black paint with eight M10 fly points, M20 top-mounted stand adapter and two FBT design aluminium handles.
The control panel provides XLR in &link, volume control, preset, delay, phase 0°-180°, GND lift.

KEY FEATURES
  • Compact vented band pass subwoofer design enclosure
  • 460 mm (18’’) custom B&C neodymium magnet high excursion woofer with 75 mm (3’’) voice coil
  • Frequency response from 36Hz to 100Hz
  • Class D amplifier delivering 1200WRMS
  • Switch mode power supply
  • DSP with 8 presets, cardioids and infra configurations, delay
  • Control panel with XLR input and link, volume, presets, delay, phase 0°-180°, groundlift
  • 18 mm (3/4’’) birch plywood enclosure, scratch resistant black paint
  • Eight M10 fly points, M20 top mount stand socket and two FBT design aluminum handles
  • Optional 4 swivel-mount casters 80 mm (3.15’’) on request
  • Perfect low-frequency extension for the MITUS range and an ideal companion for the MITUS 206LA line array for ground stack applications with optional MTB206 metal base
SPECIFICATIONS
Configuration:
1 Way
Frequency response:
36Hz - 100Hz
Low frequency woofer:
18" with 3" VC
Maximum SPL cont/peak:
135 / 139 dB
Dispersion:
Omnidirectional
Input impedance:
22kohm
Crossover frequency:
Preset Dependent
Input connector:
XLR with link out
Net Dimension (WxHxD):
574 x 594 x 730mm
Net Weight:
47kg
Transport Dimension (WxHxD):
640 x 760 x 780mm
Transport Weight:
56.2kg
AC Power requirements:
640VA
Built-in amplifier LF/HF:
1200 RMS
Built-in amplifier peak LF/HF:
2400w
Power cord:
5m PowerCon
