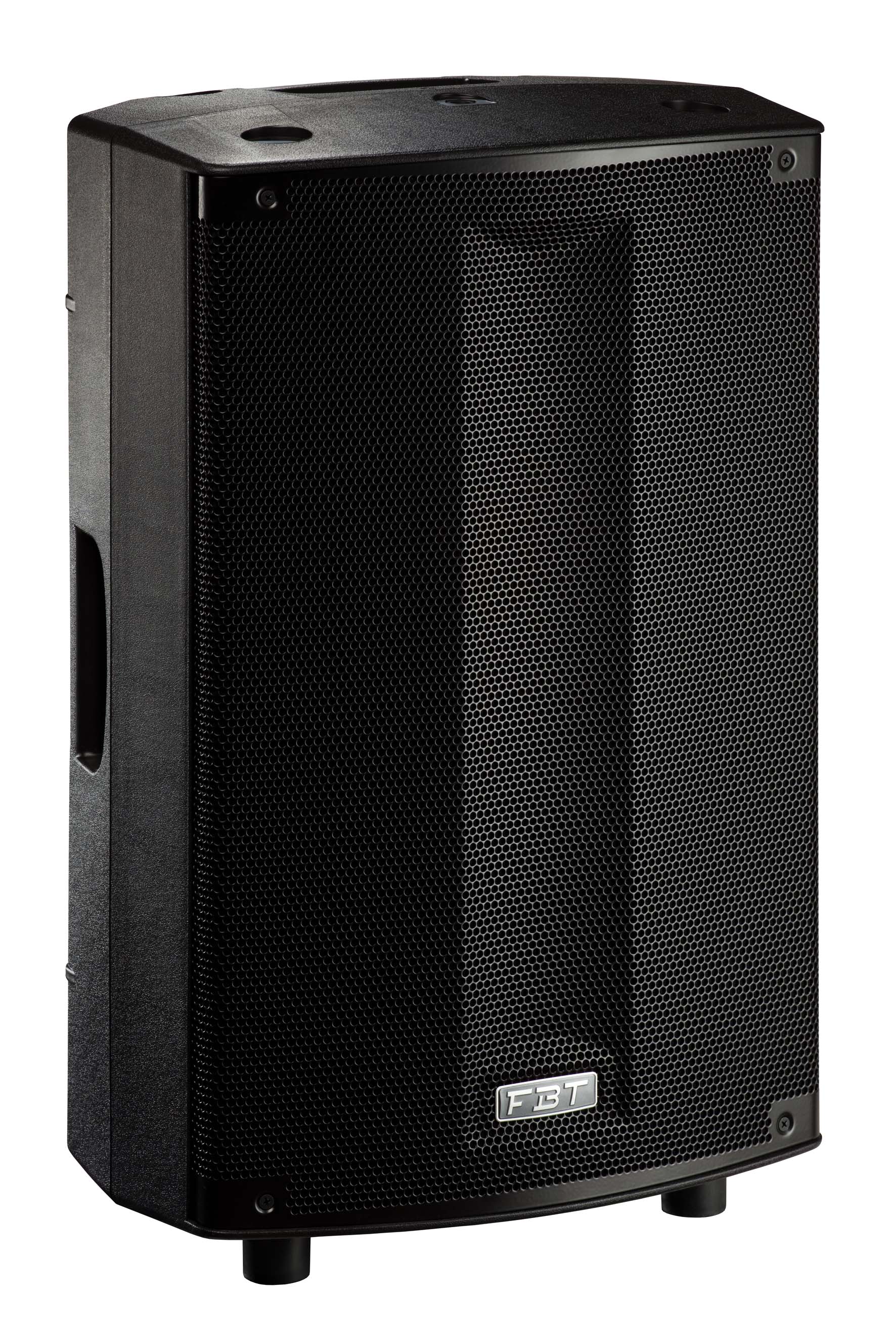

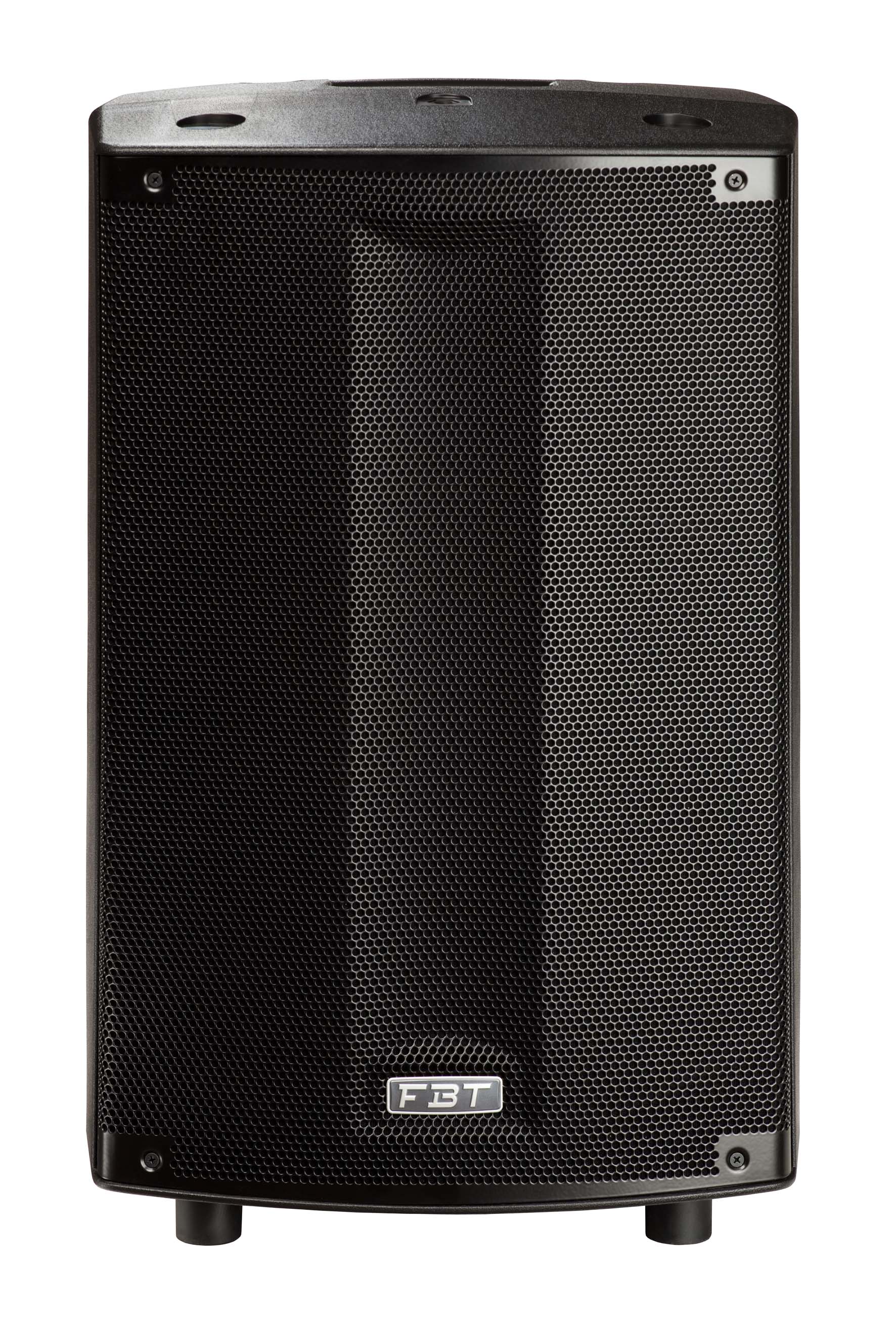

PROMaxX 114

2-way Passive speaker - 14" + 1" - 700Wrms

ProMaxX 114 is a Passive speaker equipped with a 14" custom FBT speakers complete with a 1.4" 2.5"VC B&C’s renowned compression driver Recommended amp 700 Watts RMS 8 Ohms .90°H x 60°V constant directivity horn 132dB SPL. Specially developed polypropylene cabinet and stylish full grille design.
SKU: 40683

OVERVIEW
FEATURES
SPECIFICATIONS
PRODUCT DESCRIPTION

PASSIVE REINFORCEMENT SPEAKER 700W / 8OHM – 132DB SPL

FBT is launching the next step in the PROMAXX range of portable PA enclosures. With a specially developed polypropylene cabinet and stylish full grille aesthetic, the new PROMAXX by FBT represents the next step in the evolution of a portable sound classic.

Equipped with custom FBT speakers complete with B&C’s renowned compression driver technology, PROMAXX combines true made-in-Italy quality and style.
KEY FEATURES
  • Bass reflex design cabinet

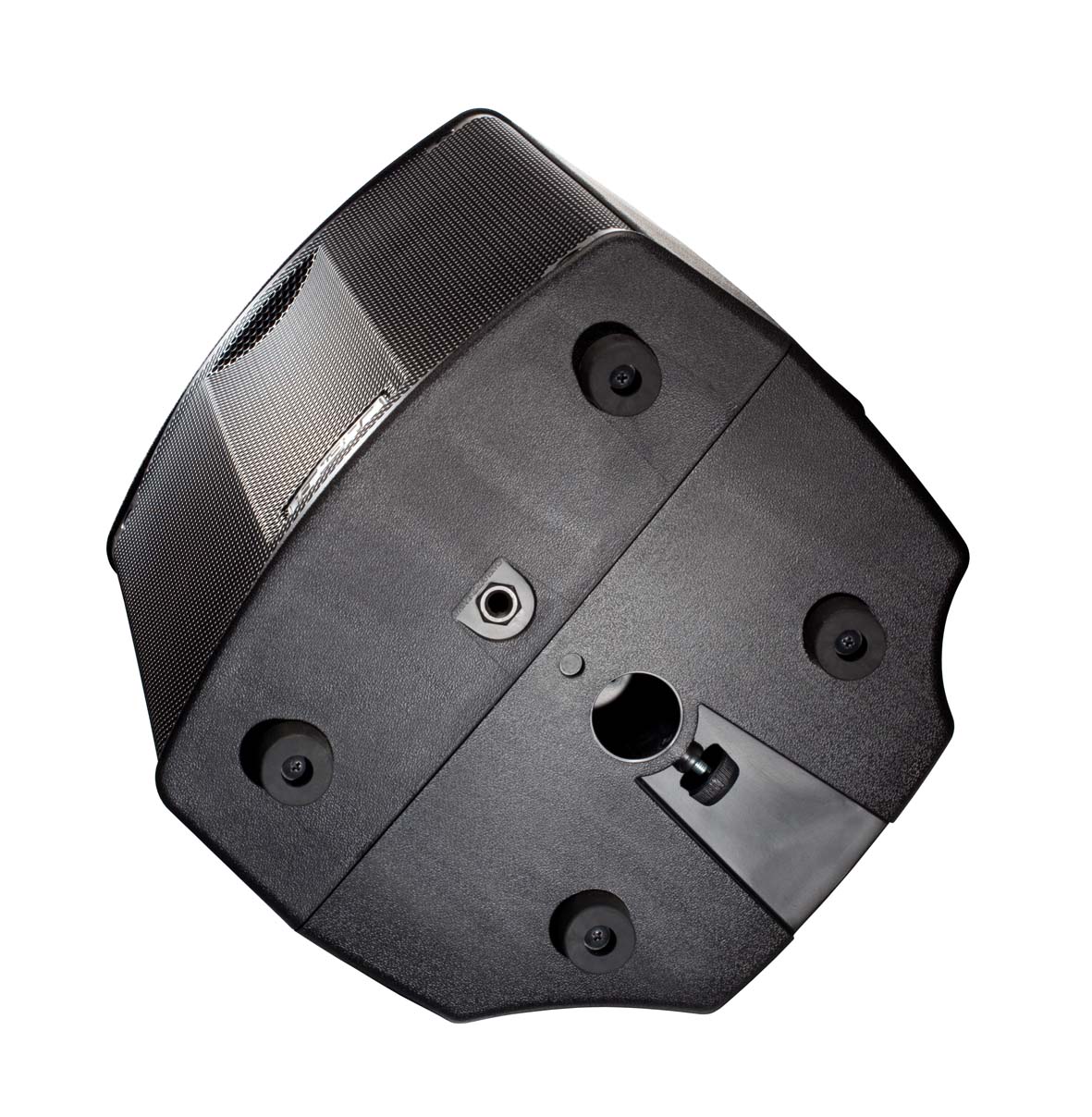

  • 2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
  • 90°H x 60°V constant directivity horn
  • Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
  • Built-in passive crossover with soft-trip protection for the LF woofer and HF driver
  • Speakon NL-4 IN and LINK OUT connectors
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
50Hz - 18kHz -6dB
Low frequency woofer:
14
High frequency driver:
1.4
Crossover frequency:
1.3kHz
Input connector:
2x Speakon NL4 In & Thru
Net Dimension (WxHxD):
402 x 644 x 345mm
Net Weight:
15kg
Transport Dimension (WxHxD):
500 x 745 x 440mm
Transport Weight:
18kg
Recommended Amplifier:
700w RMS
Long term power:
350w
Short term power:
1400w
Recommended HP filter:
40Hz -24dB/Oct
Maximum SPL continuous/peak:
128/132dB
Nominal Impedance:
8 Ohm
Sensitivity (@1W/1m):
100dB
Dispersion (H x V):
90? x 60?
