SUBline 112SA

Processed Active Subwoofer 700W RMS - 130/133dB SPL

The SubLine 112SA is a tiny compact ACTIVE sub weighing just 23Kg. Yet delivers amazing punch. The built in amplifier is 700Watts at 8 Ohms it will deliver 133dB SPL from the 12", 3" Voice coil driver. Incredible input flexibility with 2.1 option and powercon true 1 in and out. This great combination is in a Baltic birch plywood cabinet completely made in Italy .
RETAIL:
£949.00 inc VAT
 In Stock ( 33 Available )
SKU: 41223
EAN: 8034138412239
Commodity Code: 85185000
Country of Origin: Italy

OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOADS
PRODUCT DESCRIPTION

The SUBline 112SA has been completely redesigned with a bass-reflex configuration, built in birch plywood and aimed to extend the low frequency response to a wide range of FBT speaker systems.

Created with the aim to maximize SPL/SIZE ratio, they have Class D amplifiers, switch mode power supply and Digital Signal Processor with presets to match any other FBT speaker.

With IN/OUT stereo connectors, it is possible to use only one subwoofer with Left and Right speakers. The Neutrik TRUE1 Power connection negates the need for a power switch while offering a solid locking connection.

Ergonomic integrated carrying handles and tour-grade plywood cabinets allow an easy transport

KEY FEATURES
  • Bass-reflex design with high SPL and punch
  • 320mm (12") high excursion magnet woofer with 75mm (3") voice coil
  • Frequency response from 40Hz to 140Hz
  • New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
  • Digital Signal processor with 8 presets, 2 equalisation with 2 LPF Crossover settings, cardioid configuration

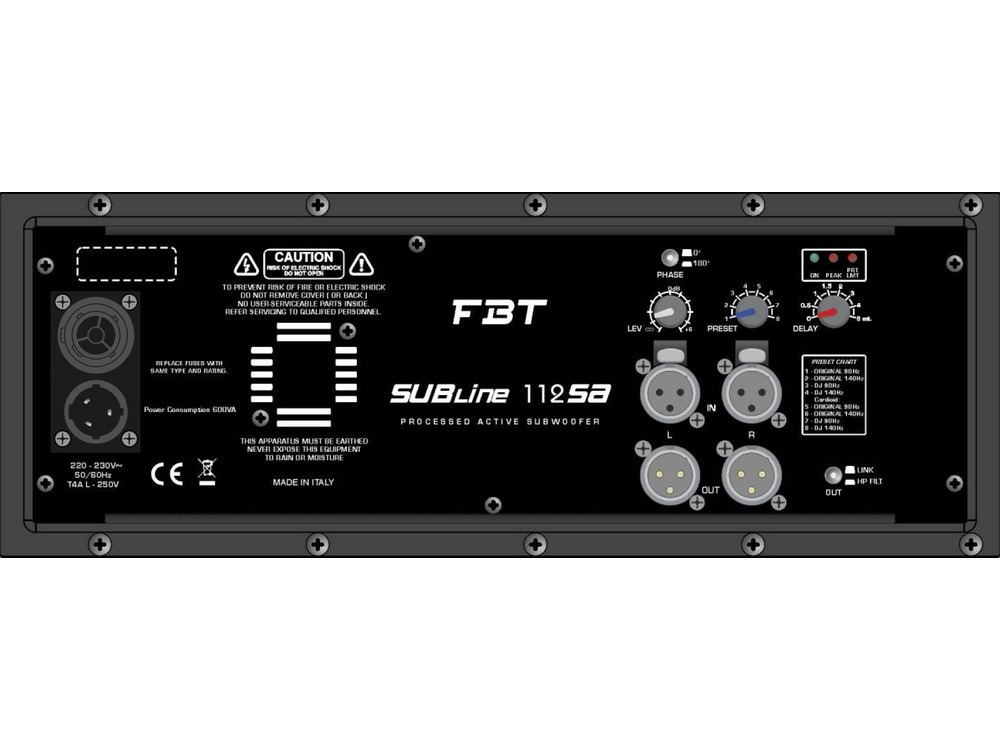

  • Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch 0°-180°, 3 status LED indicators
  • 15 mm (0.59") birch plywood scratch resistant enclosure with internal bracing
  • M20 (20mm) top mount speaker stand socket and two aluminium ergonomic FBT handles
SPECIFICATIONS
Input impedance:
22kOhm
Crossover frequency:
90 or 140Hz
Input connector:
Stereo XLR
Frequency Range:
40Hz - 140Hz (@-6dB)
Configuration:
Bass Reflex Subwoofer
Long Term Power:
700W RMS
Short Term Power:
1400W PEAK
Maximum SPL Cont/Peak:
130/133dB
Dispersion:
Omnidirectional
AC Power Requirements:
600VA
Net Dimension (WXHXD):
16,92 x 17,59 x 18,89 inch
Net Weight:
50,70 lbs
Transport Dimension (WXHXD):
22,63 x 20,27 x 20,66 inch
Transport Weight:
58,42 lbs
