ProMaxX 114A

2-way Bass reflex Active speaker - 14" + 1,4" - 700Wrms+200Wrms

ProMaxX 114a is an active speaker equipped with a 14' custom FBT speakers complete with a 1.4" 2.5"VC B&C’s renowned compression driver Biamped: 700W RMS LF, 200W RMS HF.90°H x 60°V constant directivity horn 135.5dB SPL. Specially developed polypropylene cabinet and stylish full grille design.
RETAIL:
£949.03 inc VAT
 In Stock ( 16 Available )
SKU: 40603
EAN: 8034138406030
Commodity Code: 85185000
Country of Origin: Italy

OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOADS
PRODUCT DESCRIPTION

With a specially developed polypropylene cabinet and stylish full grille aesthetic, the new PROMAXX by FBT represents the next step in the evolution of a portable sound classic.

Equipped with custom FBT speakers complete with B&C’s renowned compression driver technology,PROMAXX combines true made-in-Italy quality and style. At its heart is a purpose-built FBT amplifier module with a switch-mode power supply. For the low frequency section, 700W RMS is driven via a highly efficient Class-D topology, boasting extremely low THD. For HF, meanwhile, 200W RMS is delivered by a Class-H / AB design chosen to ensure the highest definition of audio performance at high frequencies.

Also onboard is a powerful digital signal processing (DSP) platform made available to users of all levels thanks to an intuitive graphical user interface. Located on the rear of the enclosure, the menu-driven system is navigated via a single rotary control with push-to-select functionality.

Users can choose between 6 equalizer presets, each carefully designed by FBT engineers to ensure that every application is catered for (see below). Additionally, 2 preset slots are available for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, low, mid and high tone settings and an optional delay of between 0 and 10 metres. Finally, users can exclusively choose between two limiter modes, MAX-SPL or MAX-QUALITY, to best suit their performance,

The PROMAXX feature-set is matched by the enclosure’s versatility, with options for pole-mounting, wall-hanging, suspension or even deployment in an array. The result is the most accessible PROMAXX yet.



Presets for every occasion

PROMAXX offers 6 presets to cater for a broad variety of uses, each crafted by FBT engineers. Employing powerful DSP, the presets ensure reliability while eliminating distortion.
  • ORIGINAL / LIVE The renowned, smooth FBT sound
  • VOCAL A special EQ setting to maximise speech intelligibility
  • DJ Designed to keep the energy high and your audience dancing
  • TOURING The reliability and the roar of the industry’s most popular touring systems
  • LOUDNESS The ultimate preset for listening at a medium or low volume
  • WARM A special setting to emphasise full-bodied, low-mid frequencies.
KEY FEATURES
  • 2-way, bi-amplified, bass reflex design cabinet
  • Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
  • Digital signal processor with graphic display

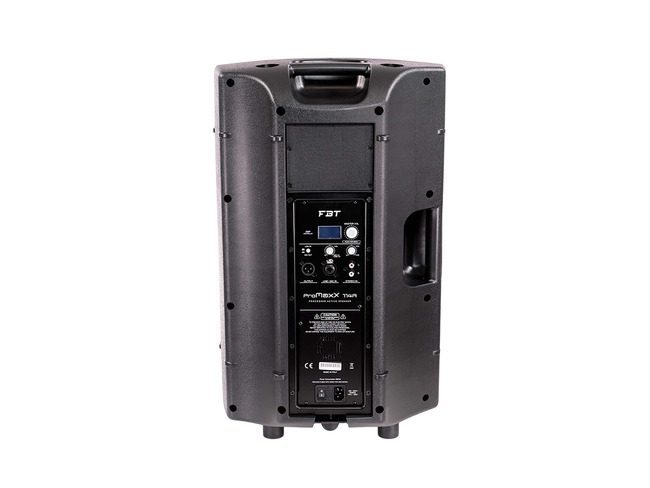

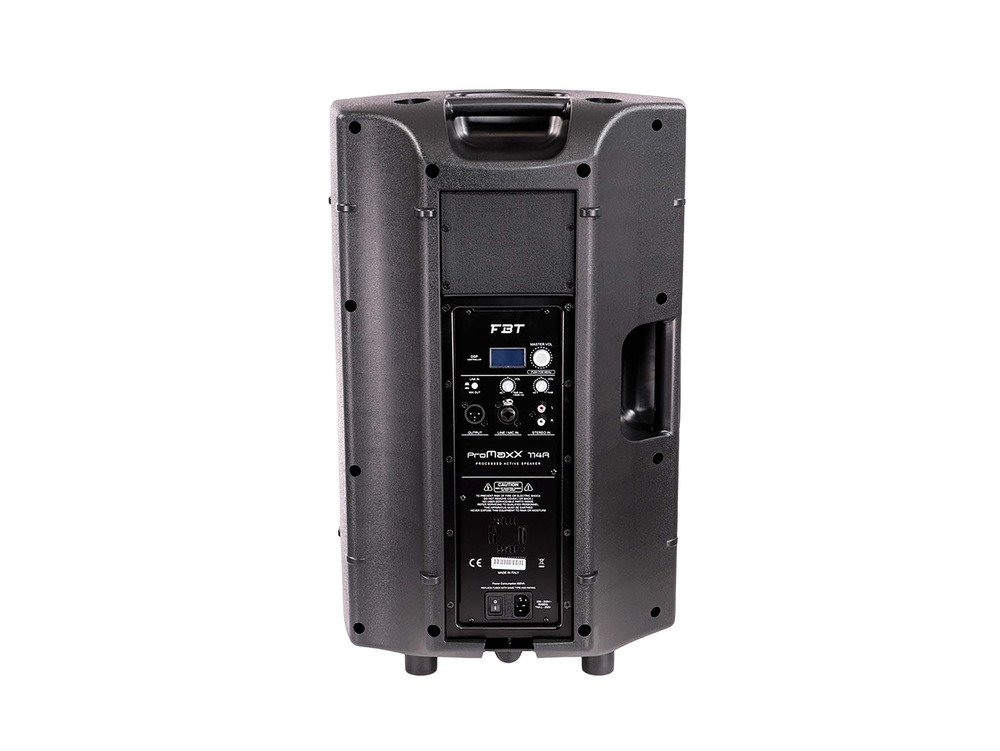

  • Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
  • 2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
  • 90°H x 60°V constant directivity horn
  • Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
  • 3550mm (14") LF woofer with 64mm (2.5") voice coil, custom made for FBT
  • 35mm (1.4") throat exit B&C HF magnet compression driver with 34mm (1.4”) voice coil
  • Frequency response from 45Hz to 20KHz
  • Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance
  • Extremely light only 17.4kg
  • Compact Dimensions: ProMaxX 114A uses the same size gas-injected polypropylene molded enclosure as the ProMaxX 112A, but features our  14” LF Woofer for lower frequency SPL
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
45Hz - 20kHz -6dB
Low frequency woofer:
14"
High frequency driver:
1.4"
Maximum SPL cont/peak:
127/135.5dB SPL
Dispersion:
90 x 60
Input impedance:
22kOhm
Input connector:
XLR/Jack Combo socket with XLR link out, RCA stereo input
Net Dimension (WxHxD):
402 x 644 x 345mm
Net Weight:
17.5kg
Transport Dimension (WxHxD):
800 x 642 x 800mm
Transport Weight:
54.5kg
AC Power requirements:
640VA
Built-in amplifier LF/HF:
900w (700w LF + 200w HF)
Built-in amplifier peak LF/HF:
1800w (1400w LF + 400w HF)
Power cord:
5m IEC
Built in amplifier:
900w (700w LF + 200w HF)
Built in amplifier peak:
1800w (1400w LF + 400w HF)
Maximum SPL continuous/peak:
127/135.5dB SPL
