Product Details
- ORIGINAL / LIVE The renowned, smooth FBT sound
- VOCAL A special EQ setting to maximise speech intelligibility
- DJ Designed to keep the energy high and your audience dancing
- TOURING The reliability and the roar of the industry’s most popular touring systems
- LOUDNESS The ultimate preset for listening at a medium or low volume
- WARM A special setting to emphasise full-bodied, low-mid frequencies.

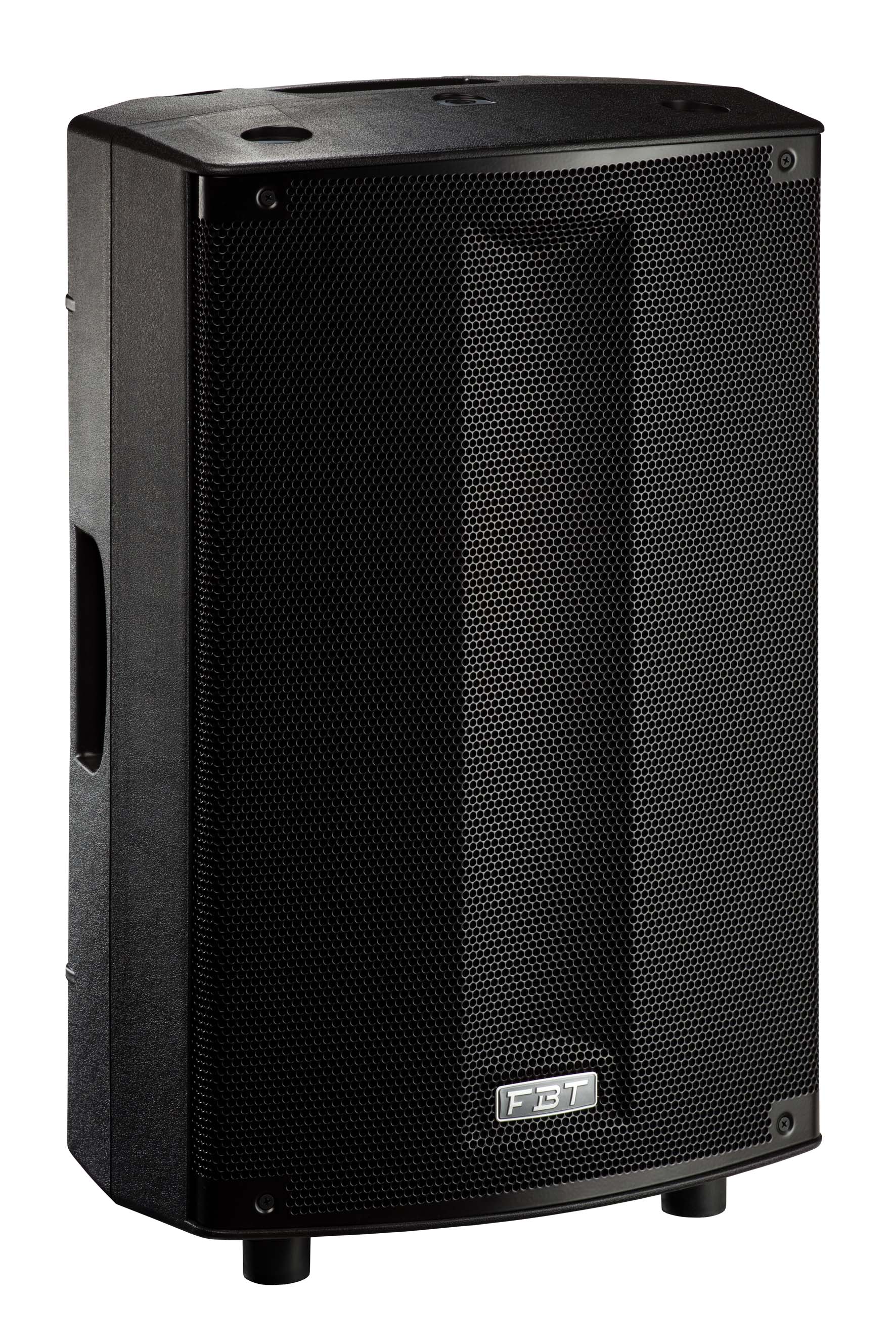

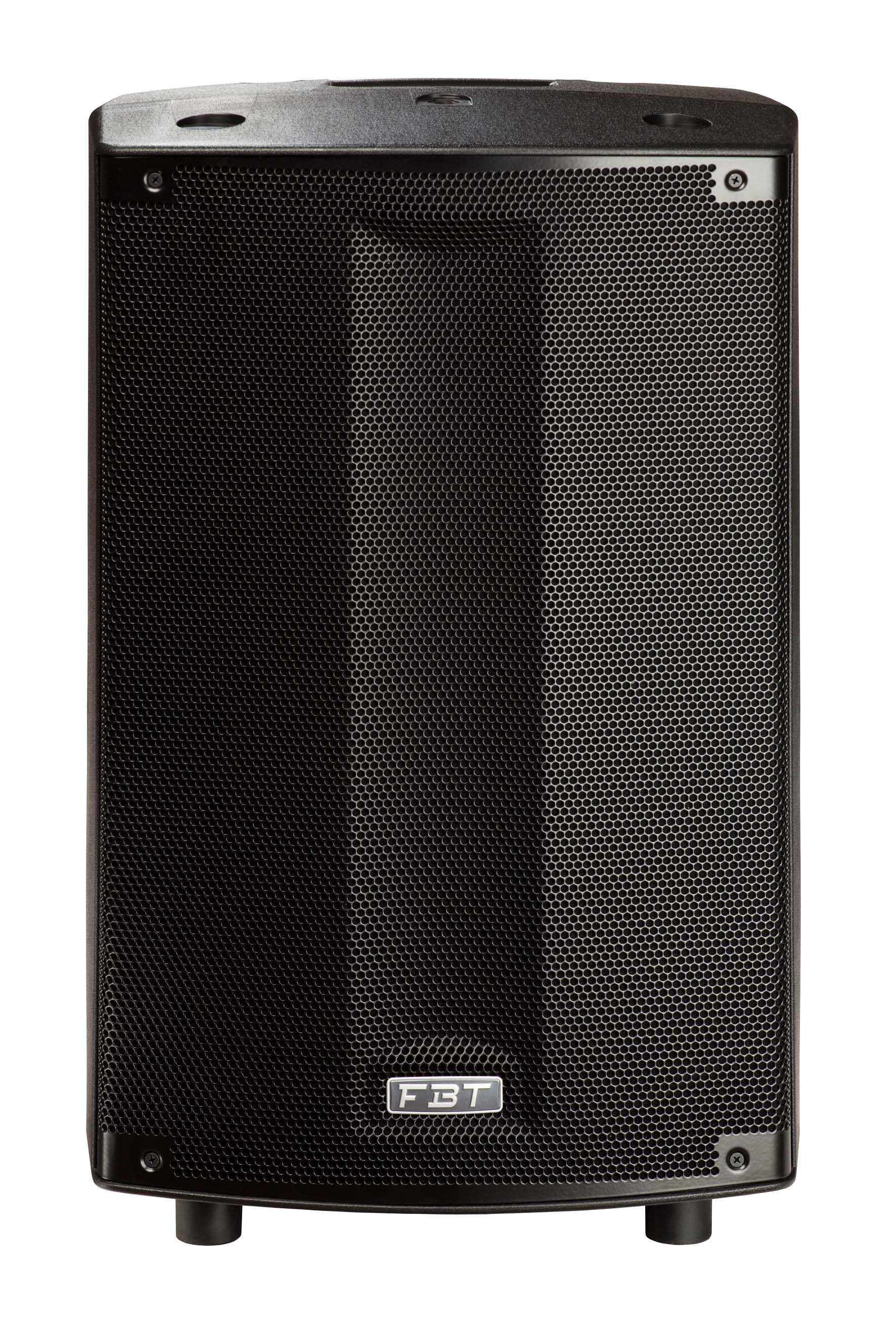

With a specially developed polypropylene cabinet and stylish full grille aesthetic, the new PROMAXX by FBT represents the next step in the evolution of a portable sound classic.
Equipped with custom FBT speakers complete with B&C’s renowned compression driver technology,PROMAXX combines true made-in-Italy quality and style. At its heart is a purpose-built FBT amplifier module with a switch-mode power supply. For the low frequency section, 700W RMS is driven via a highly efficient Class-D topology, boasting extremely low THD. For HF, meanwhile, 200W RMS is delivered by a Class-H / AB design chosen to ensure the highest definition of audio performance at high frequencies.

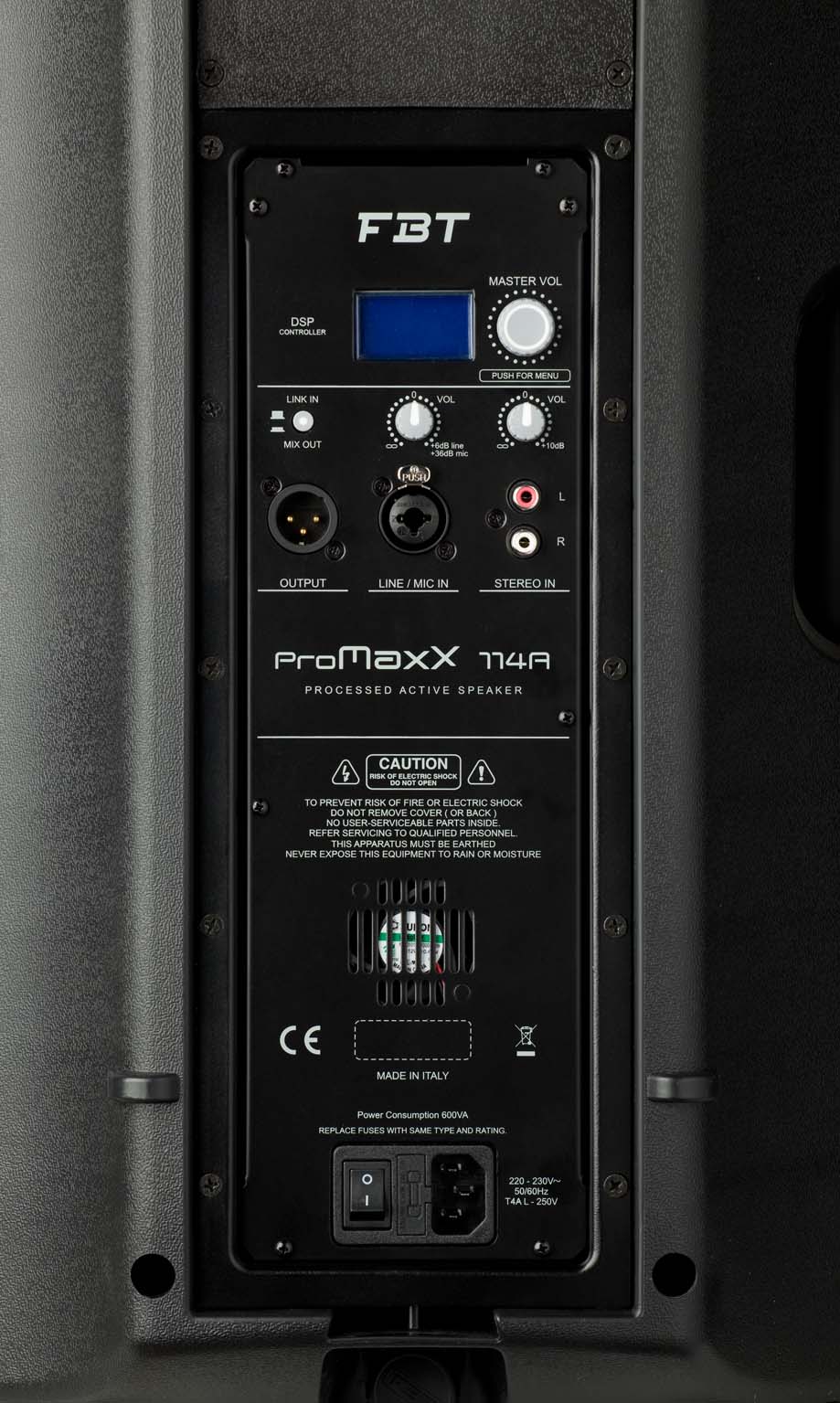

Also onboard is a powerful digital signal processing (DSP) platform made available to users of all levels thanks to an intuitive graphical user interface. Located on the rear of the enclosure, the menu-driven system is navigated via a single rotary control with push-to-select functionality.
Users can choose between 6 equalizer presets, each carefully designed by FBT engineers to ensure that every application is catered for (see below). Additionally, 2 preset slots are available for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, low, mid and high tone settings and an optional delay of between 0 and 10 metres. Finally, users can exclusively choose between two limiter modes, MAX-SPL or MAX-QUALITY, to best suit their performance,
The PROMAXX feature-set is matched by the enclosure’s versatility, with options for pole-mounting, wall-hanging, suspension or even deployment in an array. The result is the most accessible PROMAXX yet.
- ORIGINAL / LIVE The renowned, smooth FBT sound
- VOCAL A special EQ setting to maximise speech intelligibility
- DJ Designed to keep the energy high and your audience dancing
- TOURING The reliability and the roar of the industry’s most popular touring systems
- LOUDNESS The ultimate preset for listening at a medium or low volume
- WARM A special setting to emphasise full-bodied, low-mid frequencies.
Packing Info
| Configuration | 2 Way |
| Frequency response | 48Hz to 20KHz -6dB |
| Low frequency woofer | 12 |
| High frequency driver | 1 |
| Maximum SPL cont/peak | 125/133dB SPL |
| Dispersion | 90 x 60 |
| Input impedance | 22kOhm |
| Input connector | XLR/Jack Combo socket with XLR link out, RCA stereo input |
| Net Dimension (WxHxD) | 402 x 644 x 345mm |
| Net Weight | 14.8kg |
| Transport Dimension (WxHxD) | 500 x 745 x 440mm |
| Transport Weight | 32kg |
| AC Power requirements | 640VA |
| Built-in amplifier LF/HF | 900w (700w LF + 200w HF) |
| Built-in amplifier peak LF/HF | 1800w (1400w LF + 400w HF) |
| Power cord | 5m IEC |
| Built in amplifier | 900w (700w LF + 200w HF) |
| Built in amplifier peak | 1800w (1400w LF + 400w HF) |
| Maximum SPL continuous/peak | 125/133dB SPL |
| Dispersion (HxV) | 90? x 60? |
| SKU | 40604 |
| EAN | 8034138406047 |
| Dimensions | 43 x 50 x 75 |
| Weight | 20.5Kg |
| HS Code | 85185000 |
| Country of Origin | ITALY |
