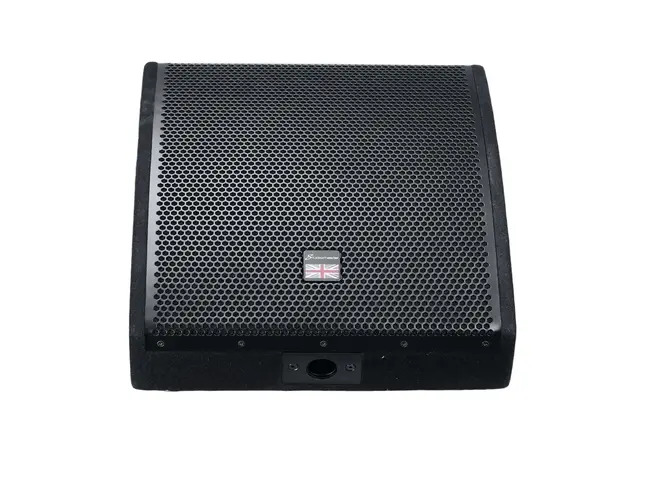

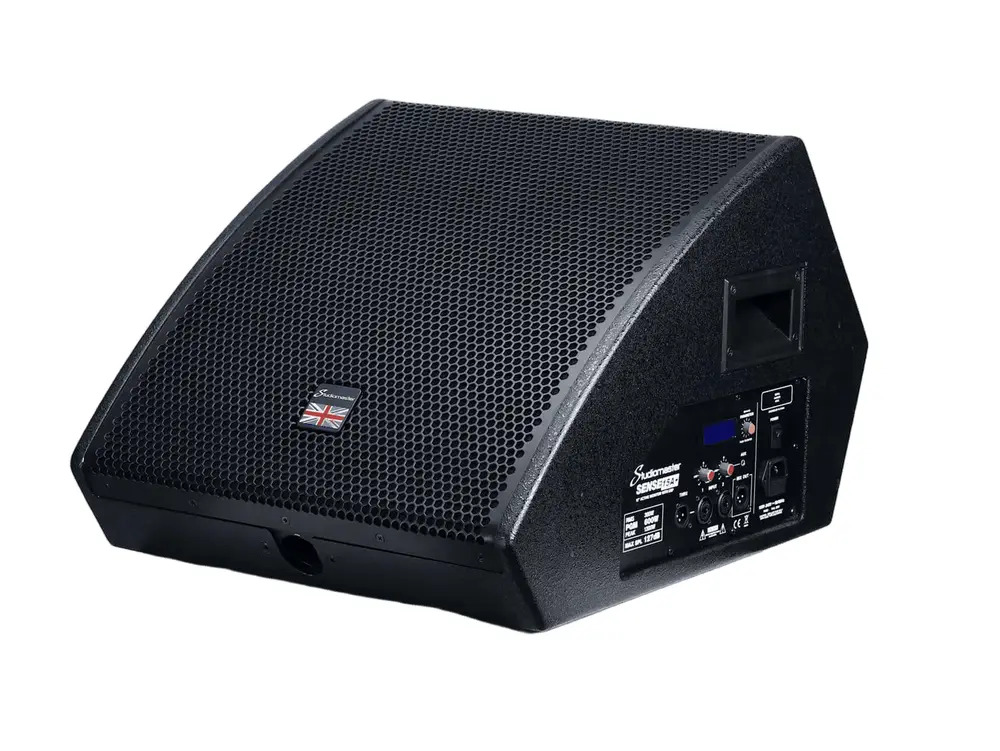

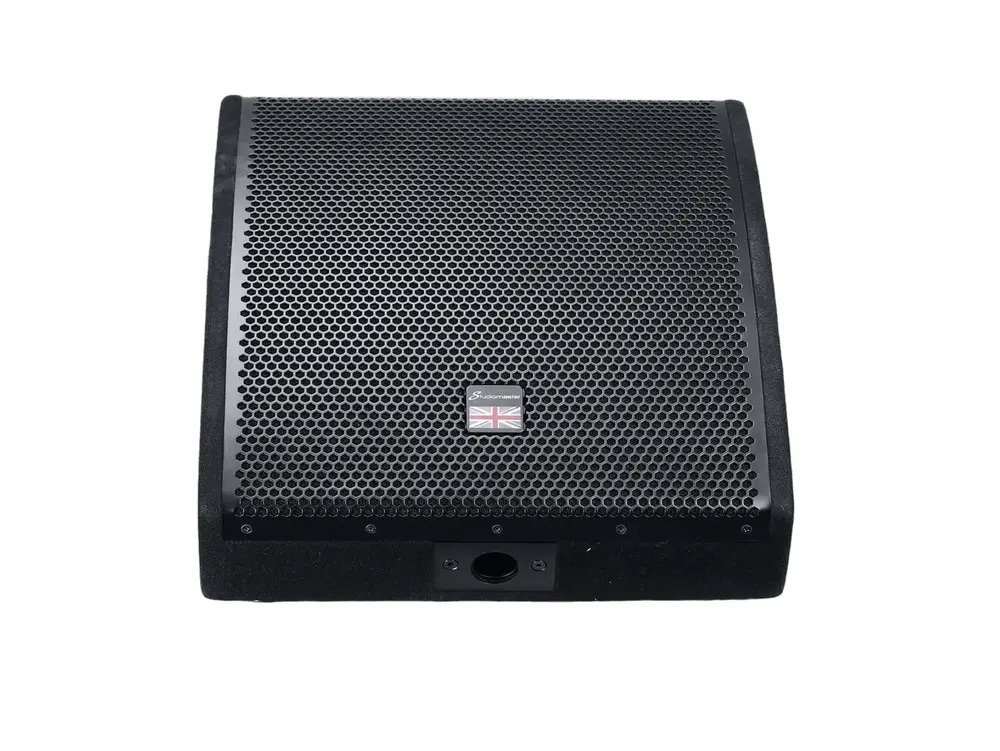

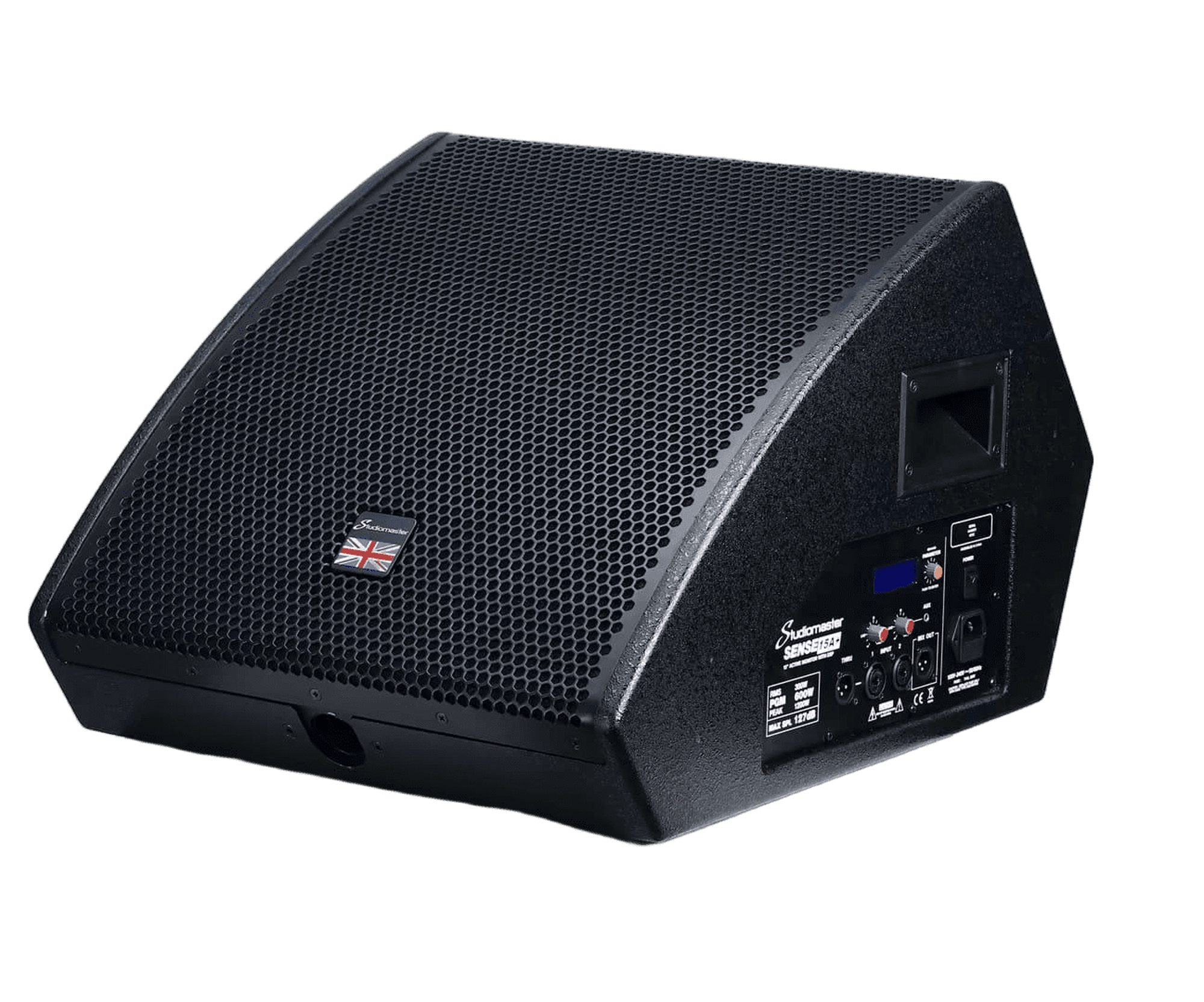

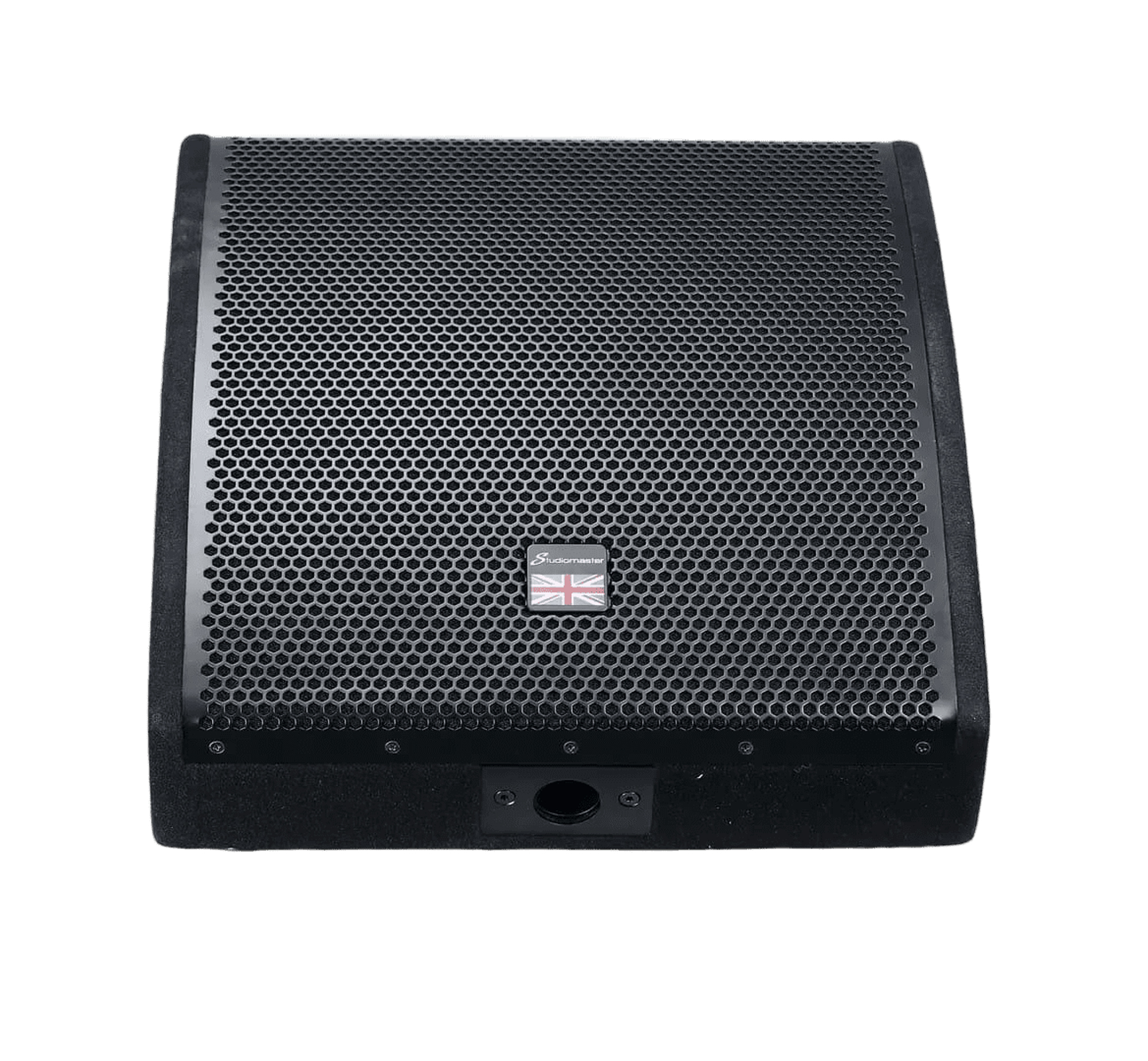

- 2-way coaxial active loudspeaker with 15" LF driver and 1.75" HF driver
- Coaxial HF and LF design for improved sensitivity, accurate tone reproduction and reduced distortion
- Neodymium HF components for high performance with reduced weight
- Dual Class D amplification with 24-bit / 48kHz DSP processing
- Built-in 3-band EQ on active models

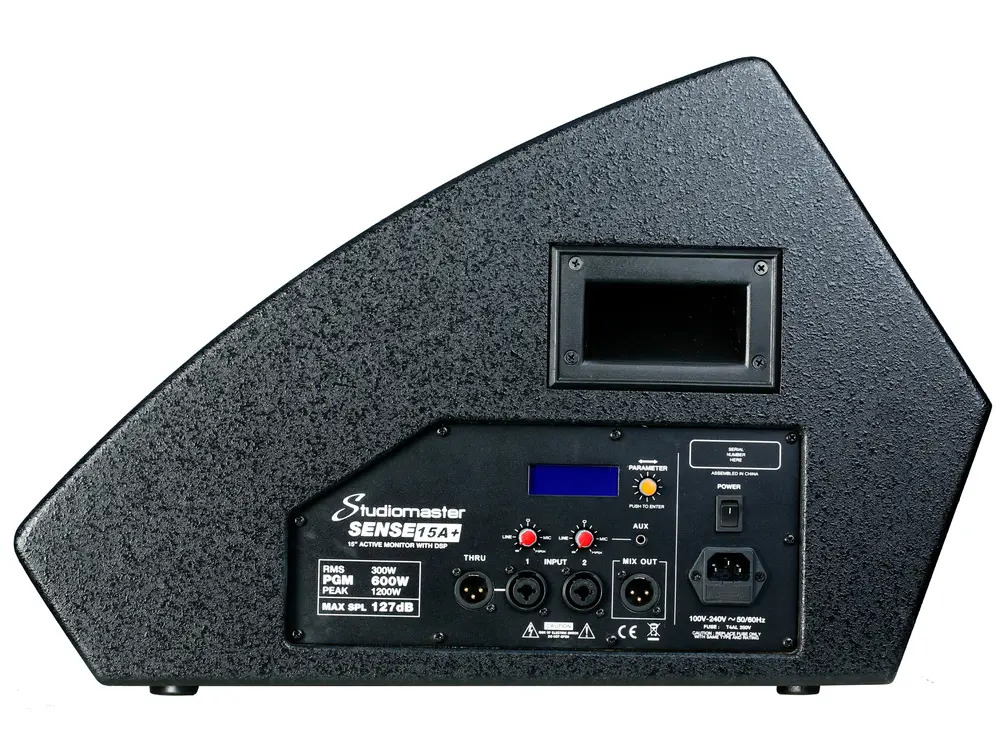

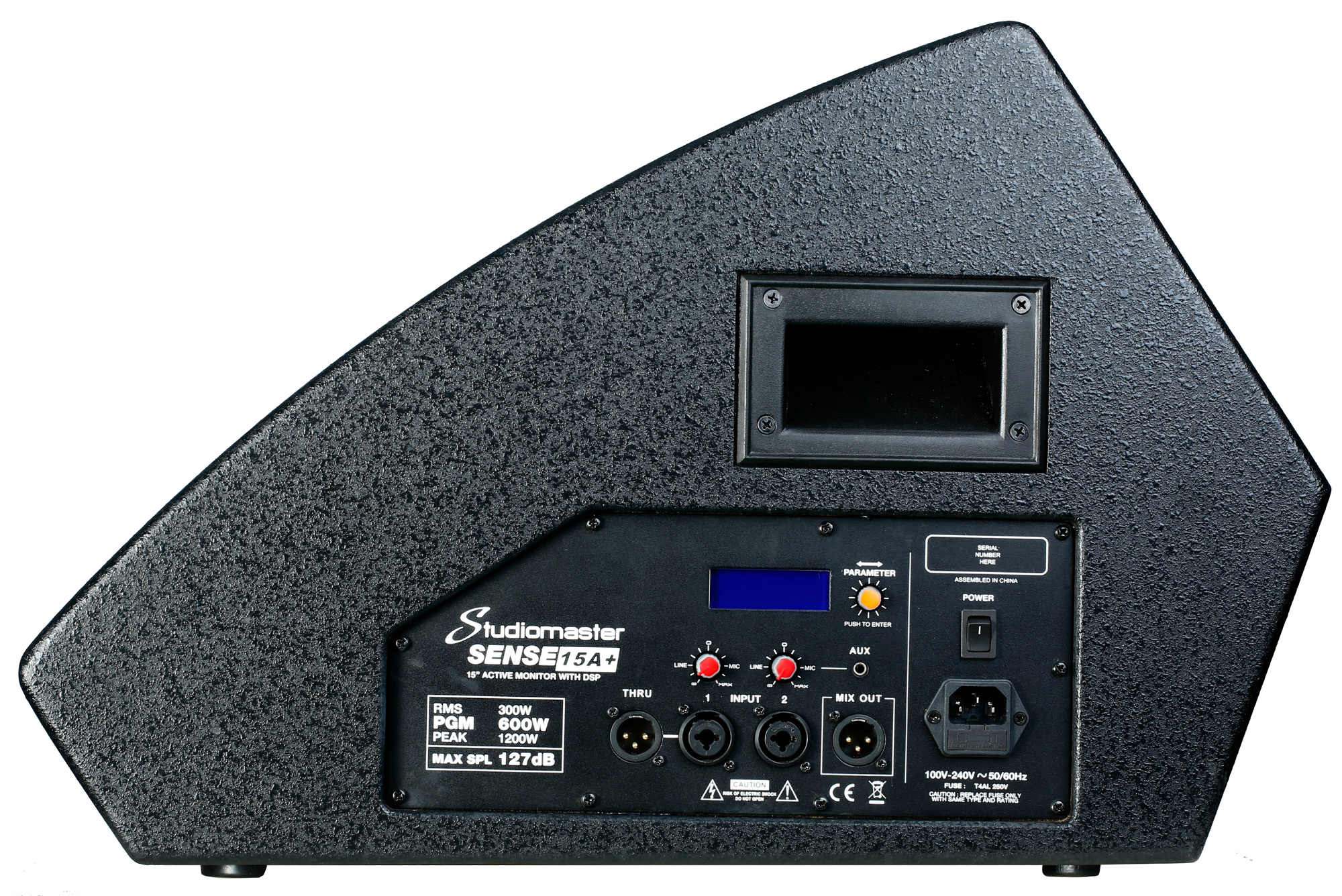

- 2 x XLR/jack combo inputs with individual level controls
- 3.5mm aux input, main mix output and link-through output
- 43° monitoring angle for use as a stage monitor
- 35mm pole mount socket for live PA use
- Available in durable painted or hard-wearing carpet finishes
- Robust steel grille for added protection
Specifications
- Max SPL: 128dB
- Peak power: 1200W
- Programme power: 600W
- RMS power: 300W, 260W LF + 40W HF
- Frequency response: 55Hz to 20kHz
- Coverage: 80° x 80°
- LF driver: 15" with 75mm voice coil
- HF driver: 1.75" with 44mm voice coil
- Crossover frequency: 2.4kHz
- Cabinet type: 2-way coaxial active
- Input connections: 2 x XLR/jack inputs, 3.5mm aux input
- Output connection: XLR output / link out
- Nominal impedance: Not applicable
- Weight: 20.5kg
- Dimensions: 460 x 510 x 377mm, W x H x D
