Product | |
Title | NYS373 |
Connection Type | Phono ("RCA/Cinch") |
Electrical | |
Contact Resistance | 10 m |
Insulation Resistance | >2000 M(Initial) |
Rated Voltage | 0.5 VAC |
Mechanical | |
Insertion and Withdrawal Force | 5-20N |
Lifetime | >5000 Mating Cycles |
Material | |
Pin | Brass |
Housing | Copper |
Housing | Zinc |
Boot | PVC |
Ground Contact | H62 |
Chuck | PA6 |
Color dividing ring | Rubber |
Elastic clamp | ABS |
Pin | Gold |
Housing | Gold |
Ground Contact | Gold |
Housing | Black |

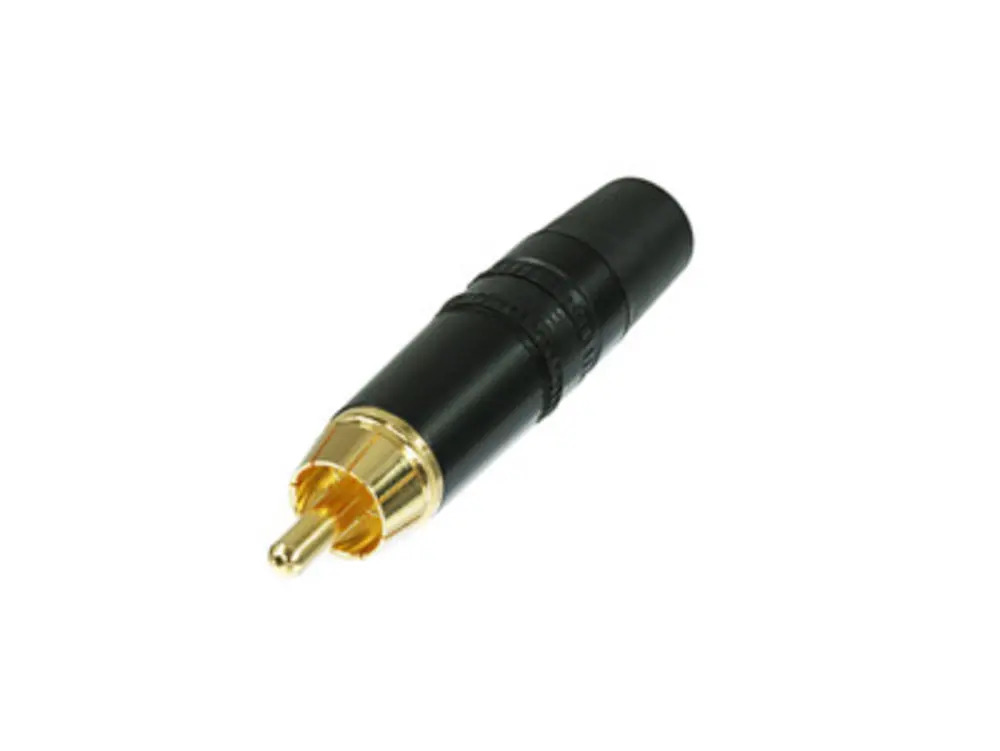

NYS373
Phono plug with gold plated contacts
Phono plug, black housing, gold plated contacts, rubber anti-kink boot, chuck type strain relief, cable O.D. 3.5 - 6.1 mm
SKU: 121758
HS Code: 85366990
Country of Origin: China
KEY FEATURES
PACKING INFO
| SKU | 121758 |
| Outer Carton Quantity | 100 |
| Commodity Code | 85366990 |
| Country of Origin | China |
