Condenser Microphone
The NX-9 is innovated for overheads, hi-hat, acoustic guitar and other instruments. The NX-9 provides extended frequency response and enlarged dynamic range. It delivers smooth and transparent reproduction.

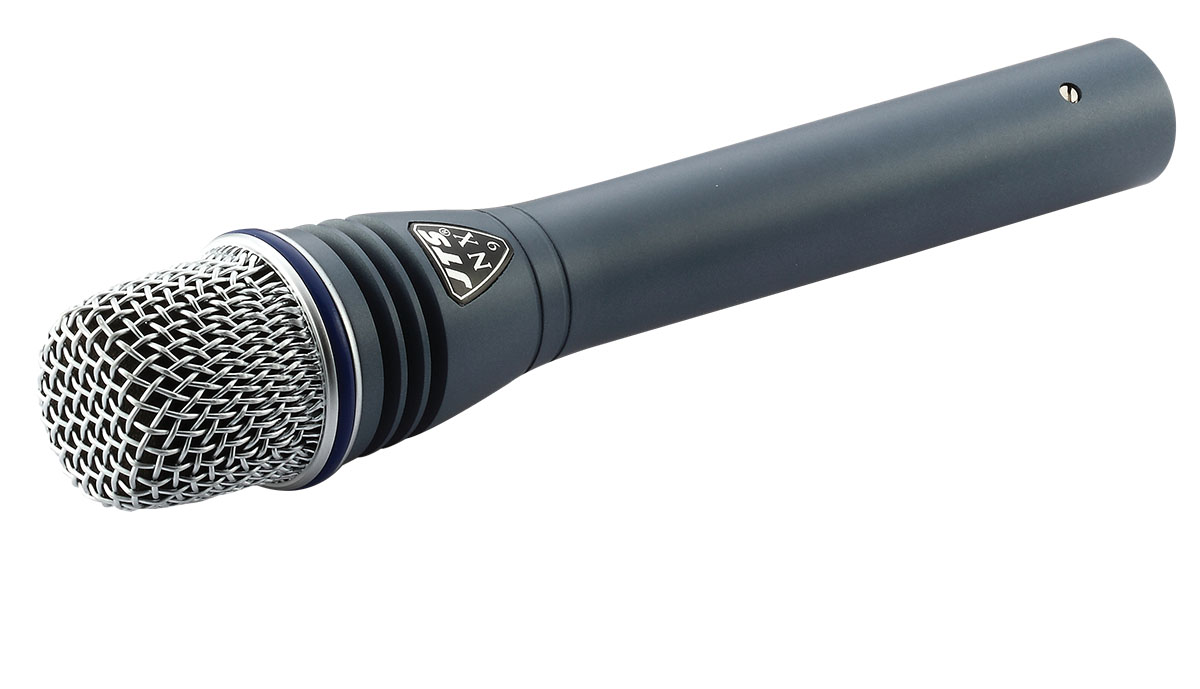

NX-9
The NX-9 is an extremely versatile microphone for overheads, hi-hat, acoustic guitar and other instruments. The NX-9 provides extended frequency response and enlarged dynamic range. It delivers smooth and transparent reproduction. Electret Condenser. Requires phantom power 48V DC or you can power this microphone by inserting a AA battery internally. Supplied in a box with a mic clip. Flat top grille design.
SKU: 81457
EAN: 4712832615715
HS Code: 8518100090
Country of Origin: China
PRODUCT DESCRIPTION
SPECIFICATIONS
Net Weight:
230g
Microphone Type:
Electret Condenser
Output Impedance:
400Ω
Polar Pattern:
Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity (at 1kHz):
-70dB* (0.32mV)*0dB
Phasing:
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector:
3 Pin Male XLR
Case:
Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
Touch Noise:
Super Low
Power Supply Required:
9-52V Phantom Power or 1.5V AA Battery
PACKING INFO
| SKU | 81457 |
| EAN | 4712832615715 |
| Outer Carton Quantity | 20 |
| Commodity Code | 8518100090 |
| Country of Origin | China |
