The MIURA 4004I is a high-power 4-channel Class D amplifier housed in a robust 2U chassis, designed for fixed installations and demanding AV applications. It delivers up to 4×1000 W at 4 Ohm, 4×900 W at 70V, or 2×2000 W at 100V in bridge mode, with asymmetric output distribution per channel. The amplifier supports Single-Ended, Bridge, and Parallel modes, offering direct drive to both low and high-impedance systems with extended headroom and efficiency. Network control is enabled via TCP/IP (AES70 compatible) and fully integrated with INFINITO software. A 4-channel Dante receiver, AES3 digital audio input/output with link, and EtherCON ports provide full network integration. The front OLED display with encoder enables onboard configuration, while rear Euroblock I/O and GPIO ensure secure and professional installation.

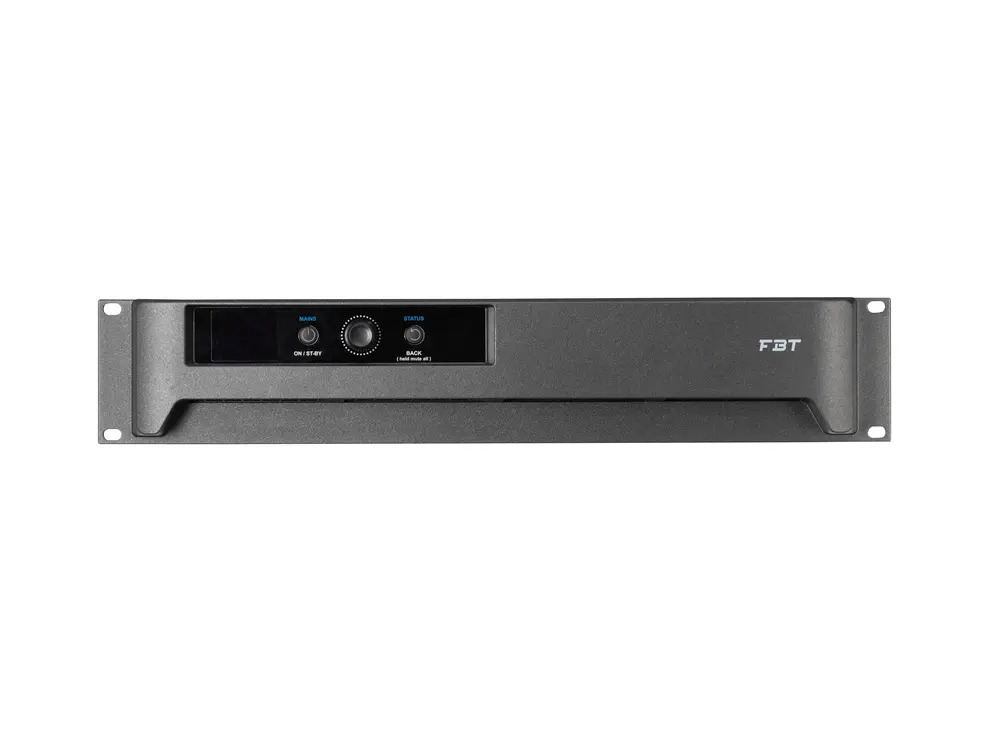

MIURA 4004I Digital Amplifier
FBT Processed Digital Networking Amplifier 4x1000W
The FBT MIURA 4004I is a touring and installation-ready 4-channel power amplifier with onboard DSP processing and an OLED front display for fast setup and monitoring. Built for modern, networked systems, it delivers clean, reliable power with flexible routing and control for scalable sound reinforcement.
PRODUCT DESCRIPTION
KEY FEATURES
4×1000 W at 4 Ohm – 4×900 W at 70V – 2×2000 W at 100V (BTL)
Asymmetric power sharing with SE, Bridge, and Parallel modes
Class D topology with PWM and ultra-low distortion (<0.05% THD+N)
4-channel Dante receiver (24bit, 48–96kHz) over TCP/IP
Network control via EtherCON (TCP/IP – AES70 – INFINITO)
AES3 digital audio I/O with link
Auto-Standby and universal PSU with Power Factor Correction
OLED display with encoder for local configuration
Euroblock connectors, 8-channel GPIO
DOWNLOADS
PACKING INFO
| SKU | 45513 |
| Outer Carton Quantity | 1 |
| Commodity Code | 8518408090 |
| Country of Origin | Italy |
