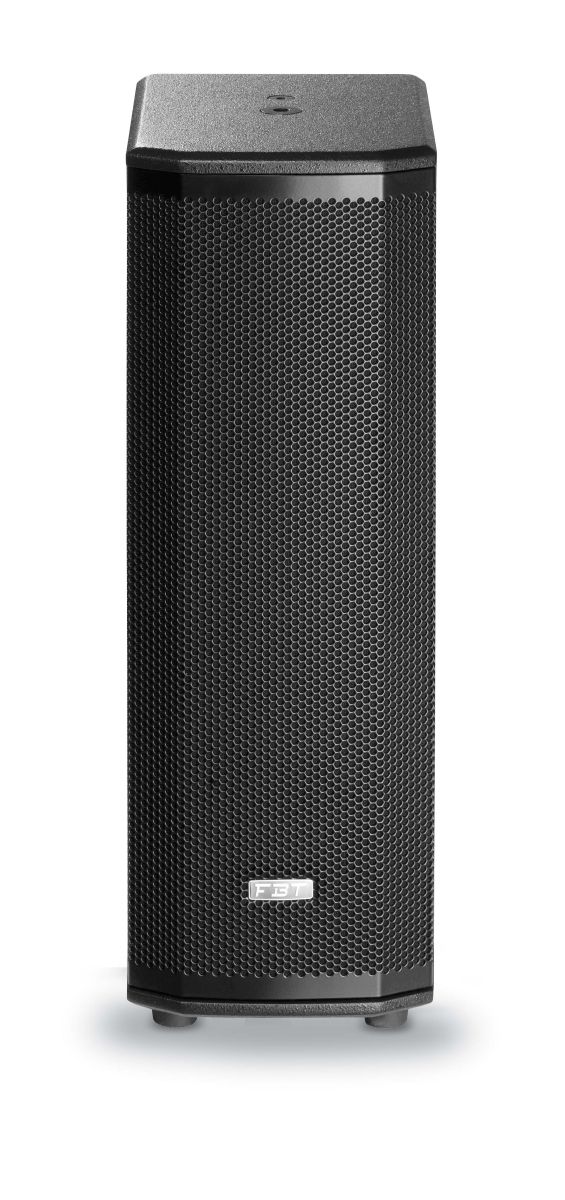

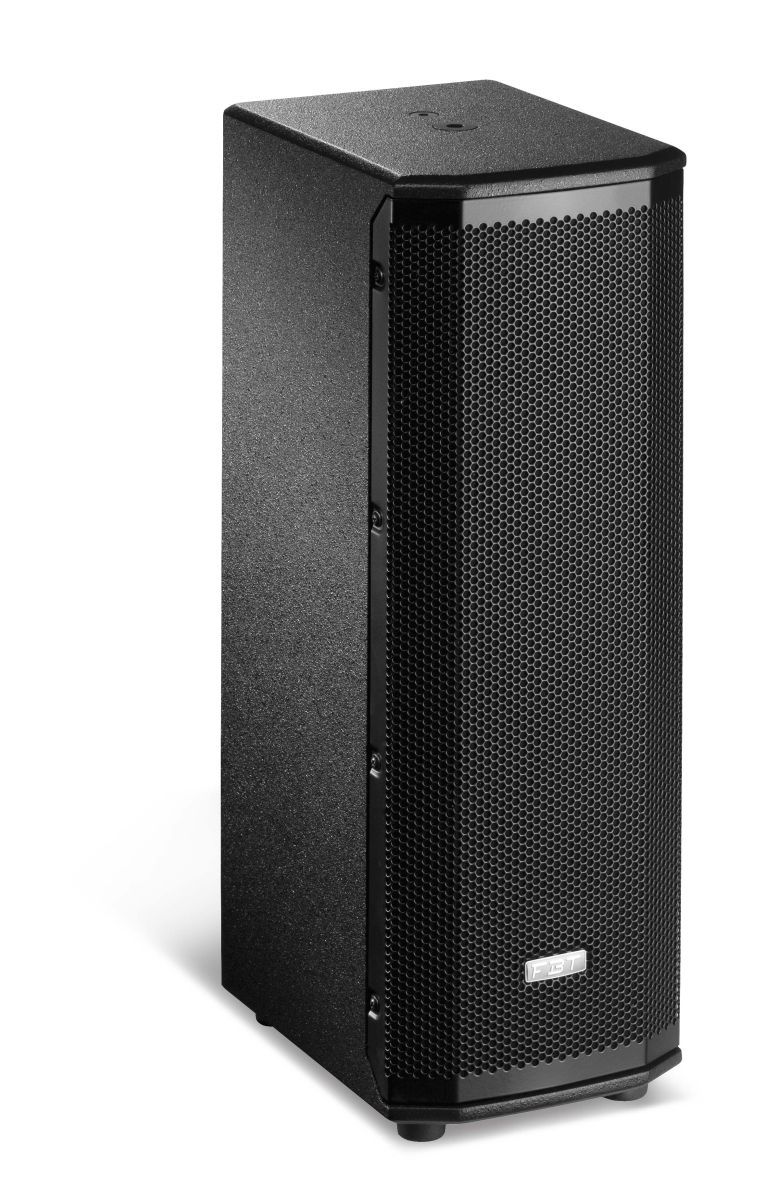

Ventis 206A Active Loudspeaker

2x 6.5" + 1x 1" 700w + 200w with DSP and Delay Active Speaker

Ventis 206A is part of the Ventis range which are ideal for portable performance or fixed installation. This Active speaker includes 2 x 6.5" woofer and a 1" rotatable horn .The built in DSP LCD screened Amp module is 700W + 200W Delivering 131dB SPL. Features a 15mm Baltic birch ply cabinet with 35mm pole mount and a full length grille. optional brackets for installation are available.

*Available in Black or White

RETAIL:
£899.00 inc VAT
 In Stock ( 34 Available )
SKU: 40639
EAN: 8034138406399
Commodity Code: 85185000
Country of Origin: Italy

OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOADS
PRODUCT DESCRIPTION

The VENTIS 206 and 206A can be deployed as a front fill, an under-balcony fill or as a main providing pristine speech intelligibility or simply as the full-range companion of a subwoofer. Constructed in 12mm birch plywood, the 206 and 206a has an integrated rear handle, an optional mounting bracket and, most importantly, an astonishing size to SPL ratio.

The enclosures are as suitable for fixed installation as they are for use on the stage.
M10 mounting points are included as standard while an optional U-bracket can be used for wall-mounting.
For use on the road, the  VENTIS models include aluminum handles with rubber inserts, and a 35mm polemount socket.



VENTIS Presets


The FBT VENTIS range offers powerful DSP with 6 versatile presets. Crafted by expert FBT engineers, the presets offer a performance for every requirement.

  • ORIGINAL / LIVE - The renowned, smooth FBT sound
  • VOCAL - A special EQ setting to maximise speech intelligibility
  • DJ - Designed to keep the energy high and your audience dancing
  • TOURING - The reliability and the roar of the industry’s most popular touring systems
  • LOUDNESS - The ultimate preset for listening at a medium or low volume
  • WARM - A special setting to emphasise full-bodied, low-mid frequencies.
KEY FEATURES
  • Size: 2-way
  • Bi-amped
  • Speaker components: 2 x 6.5" woofers, 1" x tweeter
  • 700 W class D (LF) and 200 W class H (HF)
  • DSP with 6 presets
  • Inputs: XLR / TRS combo jack and RCA (RCA, stereo)
  • XLR male link output
  • Housing material: 12 mm birch plywood
  • Dispersion pattern (nominal): 70° x 50° (H x V, rotatable)
  • Frequency response: 70 Hz - 20 kHz (-6 dB)
  • Max. sound pressure level (SPL): 131 dB
  • Dimensions: 190 x 545 x 260 mm (W x H x D)
  • Weight: 12 kg
  • Colour: black
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
70Hz - 20kHz -6dB
Low frequency woofer:
2x 6.5" / 1.5" coil
High frequency driver:
1" / 1.4" coil
Maximum SPL cont/peak:
124/131dB
Dispersion:
70 x 50 Rotatable
Input impedance:
22kOhm
Input connector:
XLR/Jack Combo socket with XLR link out, RCA stereo input
Net Dimension (WxHxD):
190 x 560 x 260mm
Net Weight:
12.3kg
Transport Dimension (WxHxD):
290 x 660 x 360mm
Transport Weight:
14.3kg
AC Power requirements:
640VA
Built-in amplifier LF/HF:
900w (700w LF/ 200w HF)
Built-in amplifier peak LF/HF:
1800w (1400w LF + 400w HF)
Power cord:
5mt
